Custom Terminal for Automation
Zenko factory offers a full range of factory-direct wire terminals, insulated connectors, Custom Terminal for Automation, available in multiple sizes and specifications Made of high-purity red copper with precision plating, they ensure reliable conductivity, corrosion resistance and long-lasting performance. We support free custom specifications to meet unique project needs, with sufficient stock for fast delivery and strict quality control for every batch. Perfect for marine, industrial automation, power distribution and electrical equipment applications.
This Custom Terminal for Automation by Zenko, a professional manufacturer and supplier in China, is a non-insulated copper crimp terminal assortment kit, compatible with 1/2/4/5/7 AWG wires. Made of high-purity tinned copper, it delivers excellent conductivity, superior corrosion resistance and stable crimp performance. Widely used for connection, termination and assembly in electrical, industrial control and power distribution equipment, it fully meets daily wiring and maintenance requirements.
Product Specifications and Dimensions

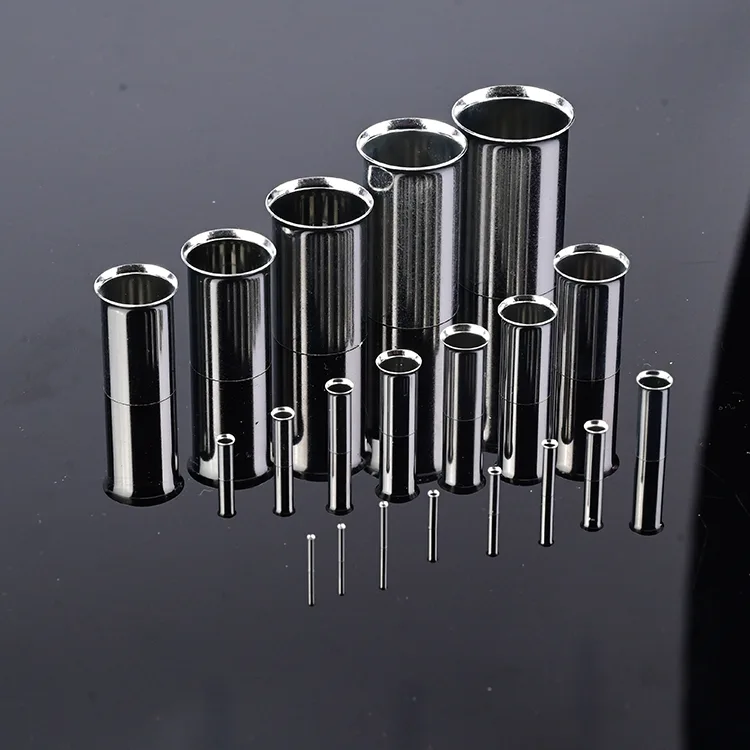

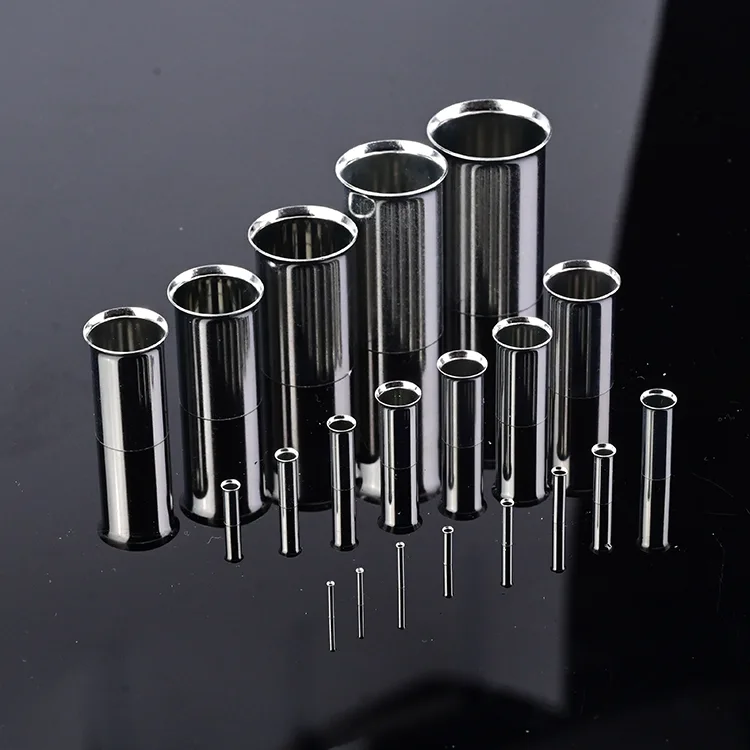

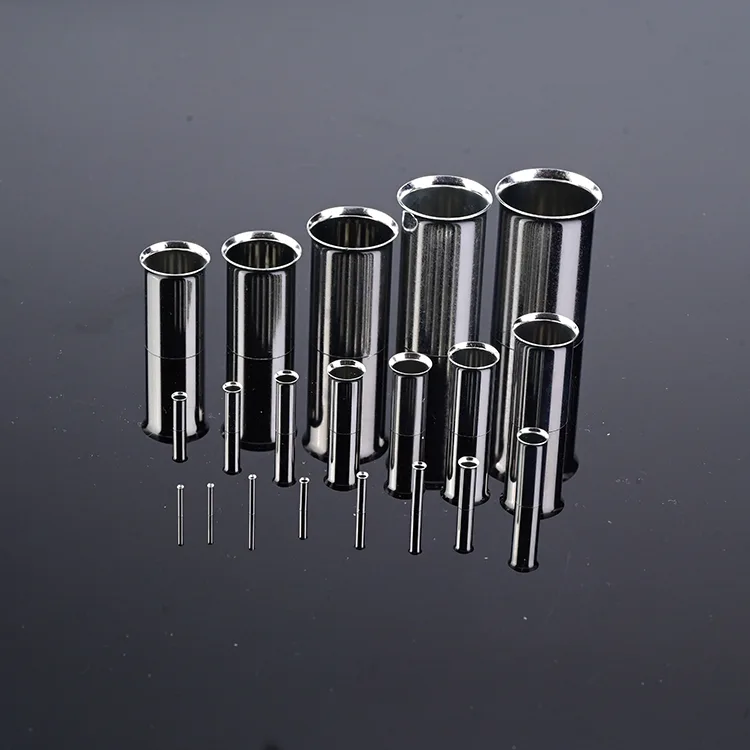

Zenko factory’s Custom Terminal for Automation Actual product and drawings
| Non-Insulated Cord End Terminal | ||||
| Max voltage:150 ℃ Ui=300V | ||||
| ITEN NO. | Dimension(mm) | Sizes can be customized | ||
| L | D | d1 | ||
| O-E0205 | 6.6 | 1 | 0.7 | |
| O-E0206 | 7.6 | 1 | 0.7 | |
| O-E0208 | 9.6 | 1 | 0.7 | |
| O-E0306 | 6.6 | 1.1 | 0.8 | |
| O-E0308 | 9.6 | 1.1 | 0.8 | |
| O-E0506 | 6.8 | 1.3 | 1 | |
| O-E0508 | 7.8 | 1.3 | 1 | |
| O-E0510 | 11.8 | 1.3 | 1 | |
| O-E0512 | 13.8 | 1.3 | 1 | |
| O-E7505 | 7 | 1.5 | 1.2 | |
| O-E7506 | 8 | 1.5 | 1.2 | |
| O-E7507 | 9 | 1.5 | 1.2 | |
| O-E7508 | 10 | 1.5 | 1.2 | |
| O-E7510 | 12 | 1.5 | 1.2 | |
| O-E7512 | 14 | 1.5 | 1.2 | |
| O-E7515 | 17 | 1.5 | 1.2 | |
| O-E7520 | 22 | 1.5 | 1.2 | |
| O-E1006 | 8 | 1.7 | 1.4 | |
| O-E1008 | 10 | 1.7 | 1.4 | |
| O-E1010 | 12 | 1.7 | 1.4 | |
| O-E1012 | 14 | 1.7 | 1.4 | |
| O-E1015 | 17 | 1.7 | 1.4 | |
| O-E1018 | 20 | 1.7 | 1.4 | |
| O-E1020 | 22 | 1.7 | 1.4 | |
| O-E1025 | 27 | 1.7 | 1.4 | |
| O-E1506 | 8 | 2 | 1.7 | |
| O-E1508 | 10 | 2 | 1.7 | |
| O-E1510 | 12 | 2 | 1.7 | |
| O-E1512 | 14 | 2 | 1.7 | |
| O-E1515 | 17 | 2 | 1.7 | |
| O-E1518 | 20 | 2 | 1.7 | |
| O-E1520 | 22 | 2 | 1.7 | |
| O-E2507 | 9.2 | 2.6 | 2.3 | |
| O-E2508 | 10.2 | 2.6 | 2.3 | |
| O-E2510 | 12.2 | 2.6 | 2.3 | |
| O-E2512 | 14.2 | 2.6 | 2.3 | |
| O-E2515 | 17.2 | 2.6 | 2.3 | |
| O-E2518 | 20.2 | 2.6 | 2.3 | |
| O-E4007 | 9 | 3.2 | 2.8 | |
| O-E4009 | 11 | 3.2 | 2.8 | |
| O-E4010 | 12 | 3.2 | 2.8 | |
| O-E4012 | 14 | 3.2 | 2.8 | |
| O-E4015 | 17 | 3.2 | 2.8 | |
| O-E4018 | 20 | 3.2 | 2.8 | |
| O-E4020 | 22 | 3.2 | 2.8 | |
| O-E4030 | 32 | 3.2 | 2.8 | |
| O-E6006 | 8 | 3.9 | 3.5 | |
| O-E6010 | 12 | 3.9 | 3.5 | |
| O-E6012 | 14.5 | 3.9 | 3.5 | |
| O-E6015 | 17.5 | 3.9 | 3.5 | |
| O-E6018 | 20.5 | 3.9 | 3.5 | |
| O-E6020 | 22.5 | 3.9 | 3.5 | |
| O-E6025 | 27.5 | 3.9 | 3.5 | |
| O-E10-6 | 9.5 | 4.9 | 4.5 | |
| O-E10-8 | 11.5 | 4.9 | 4.5 | |
| O-E10-12 | 15.5 | 4.9 | 4.5 | |
| O-E10-15 | 18.5 | 4.9 | 4.5 | |
| O-E10-16 | 19.5 | 4.9 | 4.5 | |
| O-E10-18 | 21.5 | 4.9 | 4.5 | |
| O-E10-20 | 23.5 | 4.9 | 4.5 | |
| O-E10-22 | 24.5 | 4.9 | 4.5 | |
| O-E10-25 | 28.5 | 4.9 | 4.5 | |
| O-E16-6 | 9.5 | 6.2 | 5.8 | |
| O-E16-8 | 11.5 | 6.2 | 5.8 | |
| O-E16-12 | 15.5 | 6.2 | 5.8 | |
| O-E16-15 | 18.5 | 6.2 | 5.8 | |
| O-E16-16 | 19.5 | 6.2 | 5.8 | |
| O-E16-18 | 21.5 | 6.2 | 5.8 | |
| O-E16-20 | 23.5 | 6.2 | 5.8 | |
| O-E16-22 | 25.5 | 6.2 | 5.8 | |
| O-E16-25 | 28.5 | 6.2 | 5.8 | |
| O-E16-30 | 33.5 | 6.2 | 5.8 | |
| O-E16-32 | 35.5 | 6.2 | 5.8 | |
| O-E25-16 | 19.6 | 7.9 | 7.5 | |
| O-E25-22 | 25.6 | 7.9 | 7.5 | |
| O-E35-12 | 15.6 | 8.7 | 8.3 | |
| O-E35-15 | 19.6 | 8.7 | 8.3 | |
| O-E35-18 | 21.5 | 8.7 | 8.3 | |
| O-E35-20 | 23.5 | 8.7 | 8.3 | |
| O-E35-22 | 25.5 | 8.7 | 8.3 | |
| O-E35-25 | 28.5 | 8.7 | 8.3 | |
| O-E35-30 | 33.5 | 8.7 | 8.3 | |
| O-E35-32 | 36.4 | 8.7 | 8.3 | |
| O-E50-12 | 16.4 | 10.9 | 10.3 | |
| O-E50-18 | 22.4 | 10.9 | 10.3 | |
| O-E50-20 | 24.4 | 10.9 | 10.3 | |
| O-E50-22 | 26.4 | 10.9 | 10.3 | |
| O-E50-25 | 29.4 | 10.9 | 10.3 | |
| O-E50-30 | 34.4 | 10.9 | 10.3 | |
| O-E50-32 | 36.4 | 10.9 | 10.3 | |
| O-E70-22 | 28 | 14.3 | 13.5 | |
| O-E70-25 | 31 | 14.3 | 13.5 | |
| O-E70-30 | 36 | 14.3 | 13.5 | |
| O-E70-32 | 38 | 14.3 | 13.5 | |
| O-E95-25 | 29.7 | 15.3 | 14.5 | |
| O-E95-30 | 34.7 | 15.3 | 14.5 | |
| O-E95-32 | 36.7 | 15.3 | 14.5 | |
| O-E95-35 | 41.7 | 15.3 | 14.5 | |
| O-E120-32 | 35.5 | 17.5 | 16.5 | |
| O-E120-35 | 38.5 | 17.5 | 16.5 | |
| O-E120-38 | 41.5 | 17.5 | 16.5 | |
| O-E120-40 | 43.5 | 17.5 | 16.5 | |
| O-E150-32 | 36.7 | 20.6 | 19.6 | |
| O-E150-35 | 39.7 | 20.6 | 19.6 | |
| O-E150-38 | 42.7 | 20.6 | 19.6 | |
| O-E150-40 | 47.7 | 20.6 | 19.6 | |
| O-E185-32 | 36.7 | 21.4 | 20.2 | |
| O-E185-40 | 44.7 | 21.4 | 20.2 | |
Product Details
1.BETTER CONDUCTIVITY
● The tin plated terminals and joint surfaces of the wiring terminals have better conductivity.
2.RED COPPER MATERIAL
● Good stability, the current carrying capacity of copper is smaller than that of general metals under the same current conditions.
3.QUICK WIRING
● Easy wiring saves time and effort Firm and not easy to fall off
4.DURABLE
● Corrosion resistance , resistance conductivity not easily damaged
Company Profile
Wenzhou Zenko Metal Co., Ltd., established in 2017, is a manufacturing and global export enterprise specializing in precision metal tubing and comprehensive precision machining.Our factory excels in the Custom Terminal for Automation. Meanwhile, we offer six core product lines:Ultra-thin precision copper tubes, high-precision cut pipes, custom chamfered & formed parts, vacuum annealed precision components, ultrasonic cleaning parts, and non-standard automated metal components.
Zenko factory Since entering the metal deep processing sector in 2017, we have dedicated ourselves to the industry for many years, witnessing firsthand and actively participating in the entire process of the industry chain’s development from its inception to maturity. Leveraging our practical experience gained from long-term supply partnerships with major domestic and international clients, we have continuously strengthened our technical capabilities and optimized our operational systems. This has enabled us to build a comprehensive, end-to-end service capability that integrates independent R&D, process innovation, precision quality control, large-scale production, and global end-user delivery.
Compared to typical manufacturers in the industry, we possess six core competitive advantages: higher production and delivery efficiency, tighter dimensional tolerances, greater material consistency, faster response times for customization requests, full traceability of quality throughout the process, and a more significant overall cost advantage. We are committed to showcasing our company’s capabilities through comprehensive, visually rich presentations, enabling domestic and international clients to understand our complete production process and quickly establish deep, trusting partnerships
Hot Tags: Custom Terminal for Automation, Automation Terminal Block, Industrial Automation Terminal
