Custom Terminal for Heat Dissipation
For nearly a decade, Zenko factory has deeply engaged in the metal deep processing industry. For premium Custom Terminal for Heat Dissipations with great cost performance, trust Zenko.We have built a full-chain comprehensive service system integrating independent R&D, technological innovation, precision quality control, large-scale production and global end-delivery, delivering reliable customized terminal solutions for global customers in the marine, electrical and industrial fields.

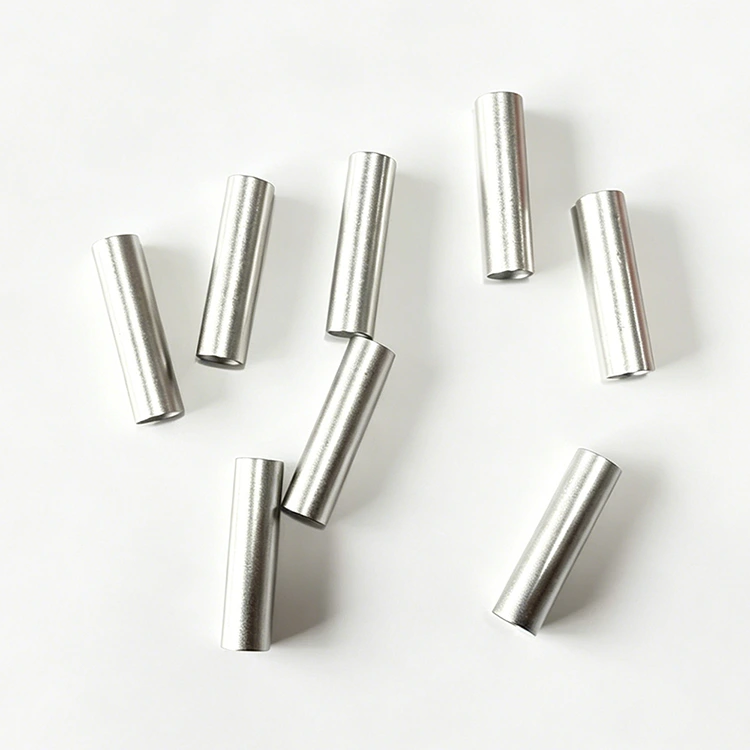

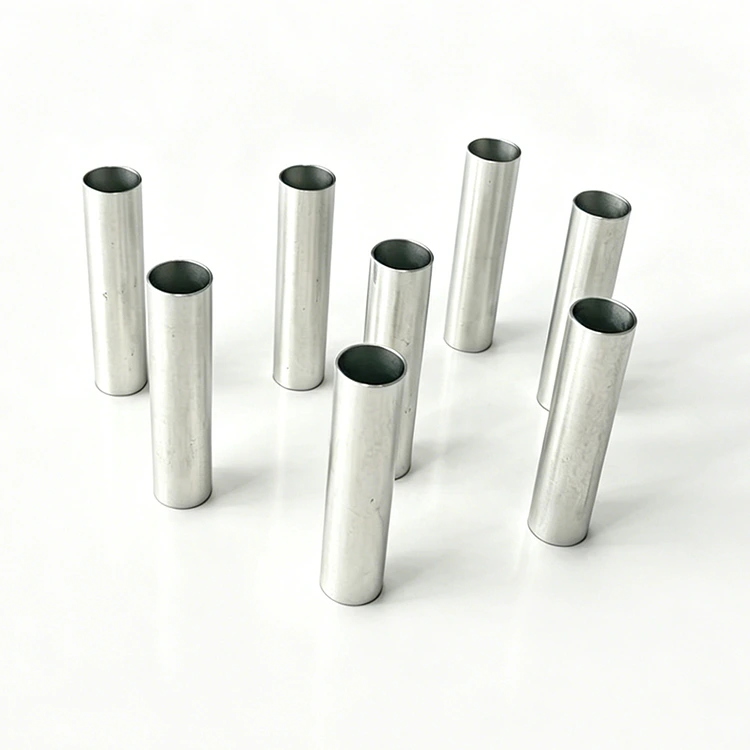

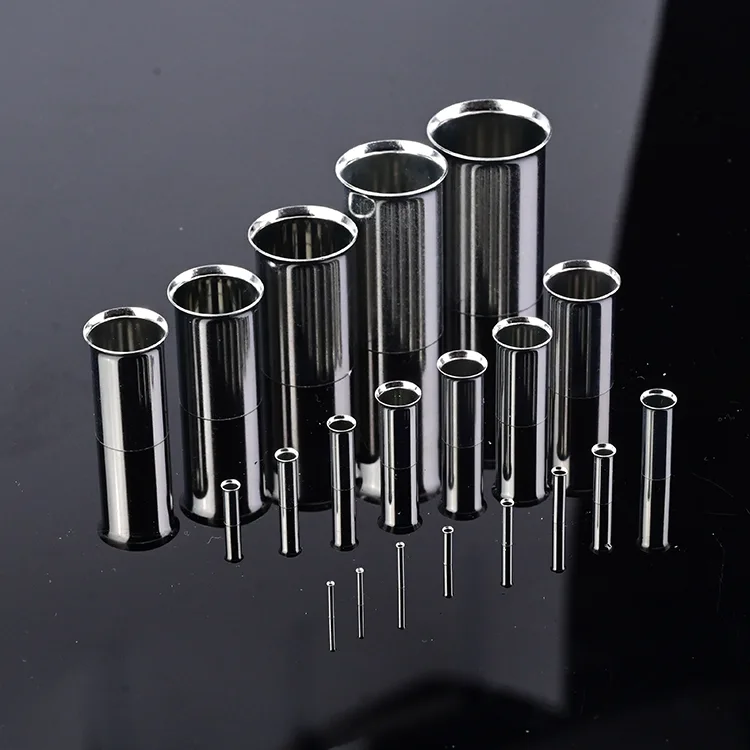

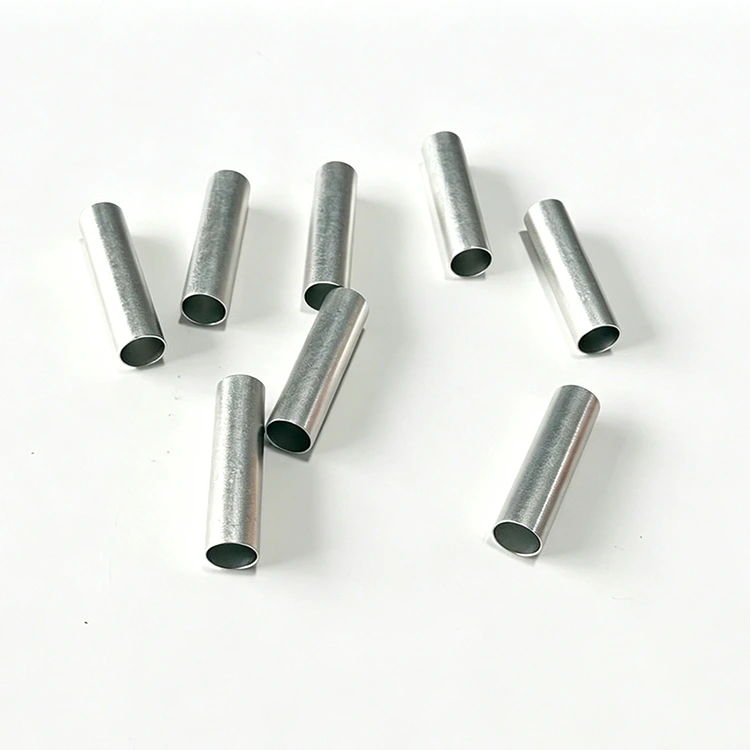

Zenko factory Custom Terminal for Heat Dissipation are made of high-purity oxygen-free red copper with seamless integral forming. Adopting European standard non-insulated design, they are exclusively engineered for marine and heavy industrial scenarios. Boasting ultra-low resistance, outstanding heat dissipation, high temperature resistance, salt spray corrosion resistance and strong anti-vibration performance, they perfectly adapt to harsh ship cabin and power cabinet environments. With independent R&D and strict quality control, we support custom dimensions to deliver long-service-life, high-safety electrical connection solutions.
Core Advantages
1.Premium High-Purity Copper Material
Made of T2 oxygen-free red copper with seamless one-piece forming. Integral tin-plated treatment ensures ultra-low contact resistance, superior electrical conductivity and efficient heat dissipation. No overheating under long-term heavy load.
2.Marine Grade Harsh Environment Resistance
European standard non-insulated design, high temperature resistant, salt spray corrosion resistant and strong anti-vibration. Perfectly adapted to ship cabin, power distribution cabinet and marine electrical harsh working conditions, stable for long-term navigation operation.
3.Independent R&D & Customized Service
Supported by professional metal deep processing technology and strict quality inspection. Standard specifications in stock, and custom size, structure and machining solution are available. Reliable long-life connection solution for global marine and industrial electrical projects.

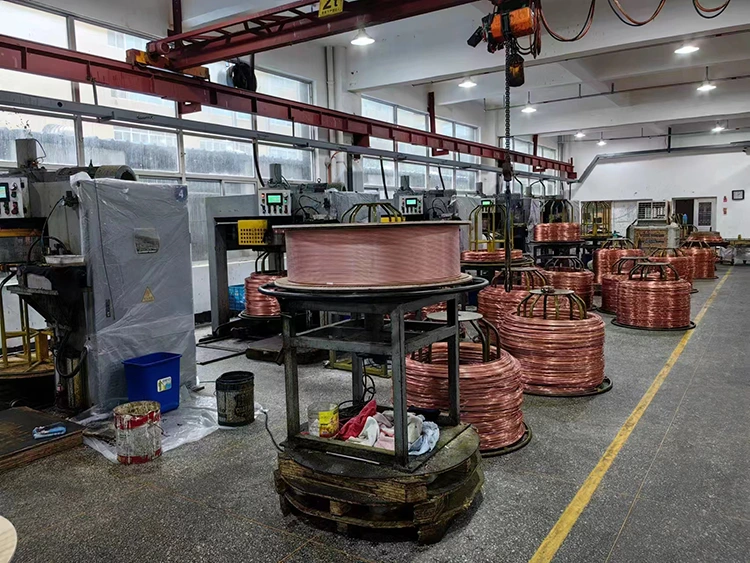

Production Process · Layer-by-Layer Quality Control

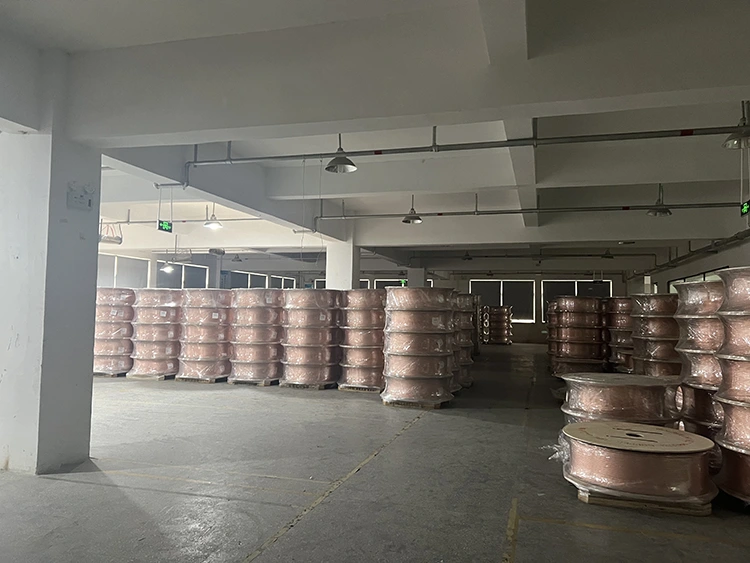

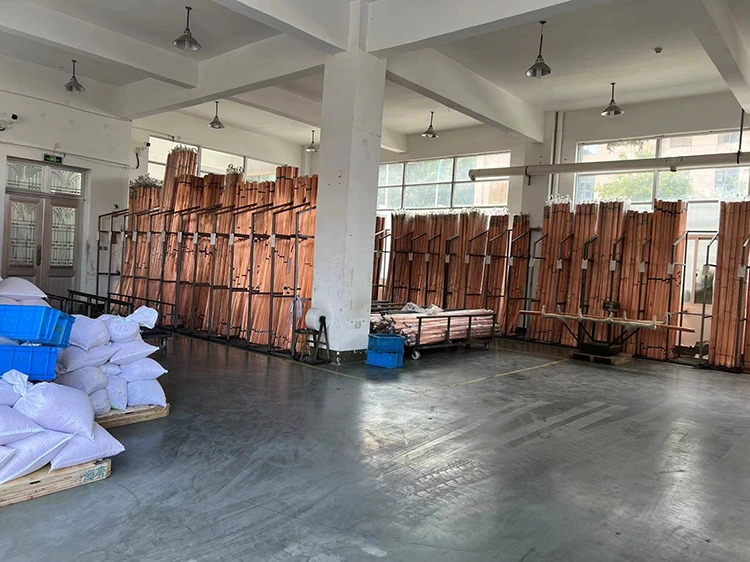

1.Material Selection: High-purity red copper, quality guaranteed from the source.

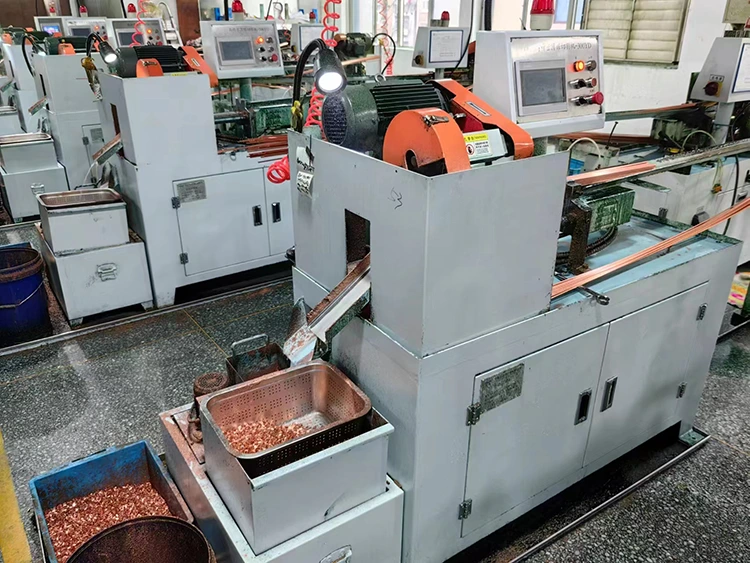

2.High-speed Stamping: In-house mass production, sufficient stock & on-time delivery.
3.Tin Plating: Integral tin coating for salt spray and oxidation resistance.

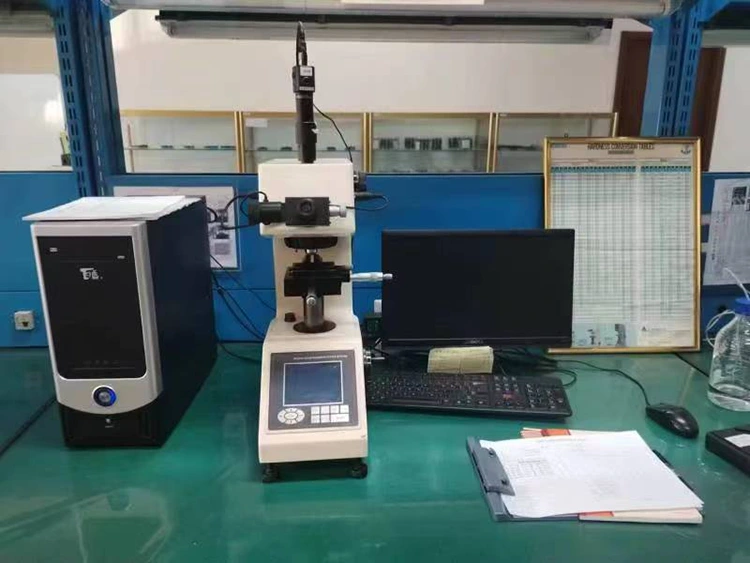

4.Strict Inspection: Multi-step testing on performance and appearance.
5.Standard Packaging: Moisture & collision proof, full quality traceability.

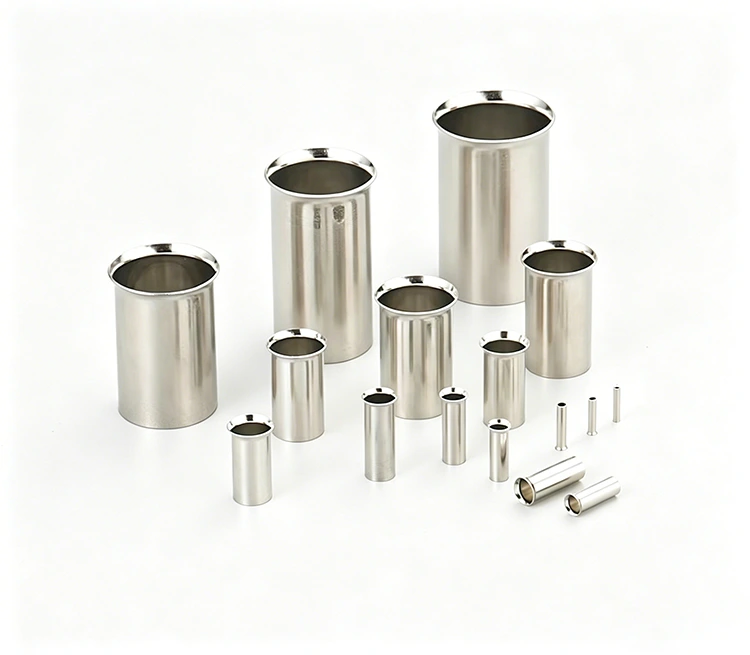

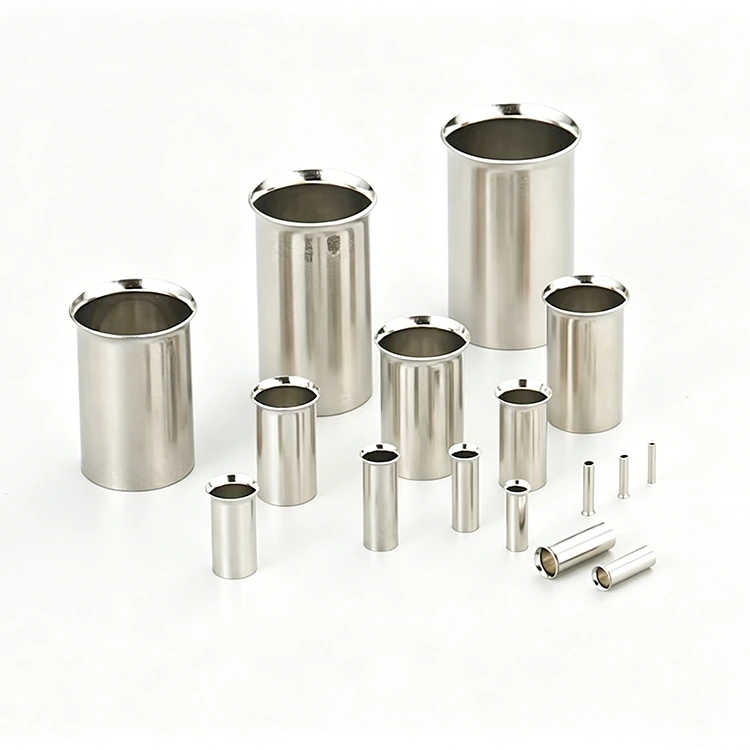

Product dimensions are customizable
Zenko facyory Custom Terminal for Heat Dissipation have multiple standard sizes of heat dissipation terminals in sufficient stock.
Custom dimensions, structures and special specifications are all available.
| Non-Insulated Cord End Terminal | ||||
| Max voltage:150 ℃ Ui=300V | ||||
| ITEN NO. | Dimension(mm) | Sizes can be customized | ||
| L | D | d1 | ||
| O-E0205 | 6.6 | 1 | 0.7 | |
| O-E0206 | 7.6 | 1 | 0.7 | |
| O-E0208 | 9.6 | 1 | 0.7 | |
| O-E0306 | 6.6 | 1.1 | 0.8 | |
| O-E0308 | 9.6 | 1.1 | 0.8 | |
| O-E0506 | 6.8 | 1.3 | 1 | |
| O-E0508 | 7.8 | 1.3 | 1 | |
| O-E0510 | 11.8 | 1.3 | 1 | |
| O-E0512 | 13.8 | 1.3 | 1 | |
| O-E7505 | 7 | 1.5 | 1.2 | |
| O-E7506 | 8 | 1.5 | 1.2 | |
| O-E7507 | 9 | 1.5 | 1.2 | |
| O-E7508 | 10 | 1.5 | 1.2 | |
| O-E7510 | 12 | 1.5 | 1.2 | |
| O-E7512 | 14 | 1.5 | 1.2 | |
| O-E7515 | 17 | 1.5 | 1.2 | |
| O-E7520 | 22 | 1.5 | 1.2 | |
| O-E1006 | 8 | 1.7 | 1.4 | |
| O-E1008 | 10 | 1.7 | 1.4 | |
| O-E1010 | 12 | 1.7 | 1.4 | |
| O-E1012 | 14 | 1.7 | 1.4 | |
| O-E1015 | 17 | 1.7 | 1.4 | |
| O-E1018 | 20 | 1.7 | 1.4 | |
| O-E1020 | 22 | 1.7 | 1.4 | |
| O-E1025 | 27 | 1.7 | 1.4 | |
| O-E1506 | 8 | 2 | 1.7 | |
| O-E1508 | 10 | 2 | 1.7 | |
| O-E1510 | 12 | 2 | 1.7 | |
| O-E1512 | 14 | 2 | 1.7 | |
| O-E1515 | 17 | 2 | 1.7 | |
| O-E1518 | 20 | 2 | 1.7 | |
| O-E1520 | 22 | 2 | 1.7 | |
| O-E2507 | 9.2 | 2.6 | 2.3 | |
| O-E2508 | 10.2 | 2.6 | 2.3 | |
| O-E2510 | 12.2 | 2.6 | 2.3 | |
| O-E2512 | 14.2 | 2.6 | 2.3 | |
| O-E2515 | 17.2 | 2.6 | 2.3 | |
| O-E2518 | 20.2 | 2.6 | 2.3 | |
| O-E4007 | 9 | 3.2 | 2.8 | |
| O-E4009 | 11 | 3.2 | 2.8 | |
| O-E4010 | 12 | 3.2 | 2.8 | |
| O-E4012 | 14 | 3.2 | 2.8 | |
| O-E4015 | 17 | 3.2 | 2.8 | |
| O-E4018 | 20 | 3.2 | 2.8 | |
| O-E4020 | 22 | 3.2 | 2.8 | |
| O-E4030 | 32 | 3.2 | 2.8 | |
| O-E6006 | 8 | 3.9 | 3.5 | |
| O-E6010 | 12 | 3.9 | 3.5 | |
| O-E6012 | 14.5 | 3.9 | 3.5 | |
| O-E6015 | 17.5 | 3.9 | 3.5 | |
| O-E6018 | 20.5 | 3.9 | 3.5 | |
| O-E6020 | 22.5 | 3.9 | 3.5 | |
| O-E6025 | 27.5 | 3.9 | 3.5 | |
| O-E10-6 | 9.5 | 4.9 | 4.5 | |
| O-E10-8 | 11.5 | 4.9 | 4.5 | |
| O-E10-12 | 15.5 | 4.9 | 4.5 | |
| O-E10-15 | 18.5 | 4.9 | 4.5 | |
| O-E10-16 | 19.5 | 4.9 | 4.5 | |
| O-E10-18 | 21.5 | 4.9 | 4.5 | |
| O-E10-20 | 23.5 | 4.9 | 4.5 | |
| O-E10-22 | 24.5 | 4.9 | 4.5 | |
| O-E10-25 | 28.5 | 4.9 | 4.5 | |
| O-E16-6 | 9.5 | 6.2 | 5.8 | |
| O-E16-8 | 11.5 | 6.2 | 5.8 | |
| O-E16-12 | 15.5 | 6.2 | 5.8 | |
| O-E16-15 | 18.5 | 6.2 | 5.8 | |
| O-E16-16 | 19.5 | 6.2 | 5.8 | |
| O-E16-18 | 21.5 | 6.2 | 5.8 | |
| O-E16-20 | 23.5 | 6.2 | 5.8 | |
| O-E16-22 | 25.5 | 6.2 | 5.8 | |
| O-E16-25 | 28.5 | 6.2 | 5.8 | |
| O-E16-30 | 33.5 | 6.2 | 5.8 | |
| O-E16-32 | 35.5 | 6.2 | 5.8 | |
| O-E25-16 | 19.6 | 7.9 | 7.5 | |
| O-E25-22 | 25.6 | 7.9 | 7.5 | |
| O-E35-12 | 15.6 | 8.7 | 8.3 | |
| O-E35-15 | 19.6 | 8.7 | 8.3 | |
| O-E35-18 | 21.5 | 8.7 | 8.3 | |
| O-E35-20 | 23.5 | 8.7 | 8.3 | |
| O-E35-22 | 25.5 | 8.7 | 8.3 | |
| O-E35-25 | 28.5 | 8.7 | 8.3 | |
| O-E35-30 | 33.5 | 8.7 | 8.3 | |
| O-E35-32 | 36.4 | 8.7 | 8.3 | |
| O-E50-12 | 16.4 | 10.9 | 10.3 | |
| O-E50-18 | 22.4 | 10.9 | 10.3 | |
| O-E50-20 | 24.4 | 10.9 | 10.3 | |
| O-E50-22 | 26.4 | 10.9 | 10.3 | |
| O-E50-25 | 29.4 | 10.9 | 10.3 | |
| O-E50-30 | 34.4 | 10.9 | 10.3 | |
| O-E50-32 | 36.4 | 10.9 | 10.3 | |
| O-E70-22 | 28 | 14.3 | 13.5 | |
| O-E70-25 | 31 | 14.3 | 13.5 | |
| O-E70-30 | 36 | 14.3 | 13.5 | |
| O-E70-32 | 38 | 14.3 | 13.5 | |
| O-E95-25 | 29.7 | 15.3 | 14.5 | |
| O-E95-30 | 34.7 | 15.3 | 14.5 | |
| O-E95-32 | 36.7 | 15.3 | 14.5 | |
| O-E95-35 | 41.7 | 15.3 | 14.5 | |
| O-E120-32 | 35.5 | 17.5 | 16.5 | |
| O-E120-35 | 38.5 | 17.5 | 16.5 | |
| O-E120-38 | 41.5 | 17.5 | 16.5 | |
| O-E120-40 | 43.5 | 17.5 | 16.5 | |
| O-E150-32 | 36.7 | 20.6 | 19.6 | |
| O-E150-35 | 39.7 | 20.6 | 19.6 | |
| O-E150-38 | 42.7 | 20.6 | 19.6 | |
| O-E150-40 | 47.7 | 20.6 | 19.6 | |
| O-E185-32 | 36.7 | 21.4 | 20.2 | |
| O-E185-40 | 44.7 | 21.4 | 20.2 | |
Industry Leading Six Core Strengths
Compared with Custom Terminal for Heat Dissipation ordinary manufacturers in the industry, Zenko Factory has six core competitive advantages: higher production and delivery efficiency, smaller dimensional tolerance, stronger material stability, faster customized response cycle, full-process quality traceability and more prominent comprehensive cost advantages. We fully display our enterprise strength with pictures and texts, enabling global customers to clearly understand the complete production process and quickly establish in-depth cooperation and trust.
