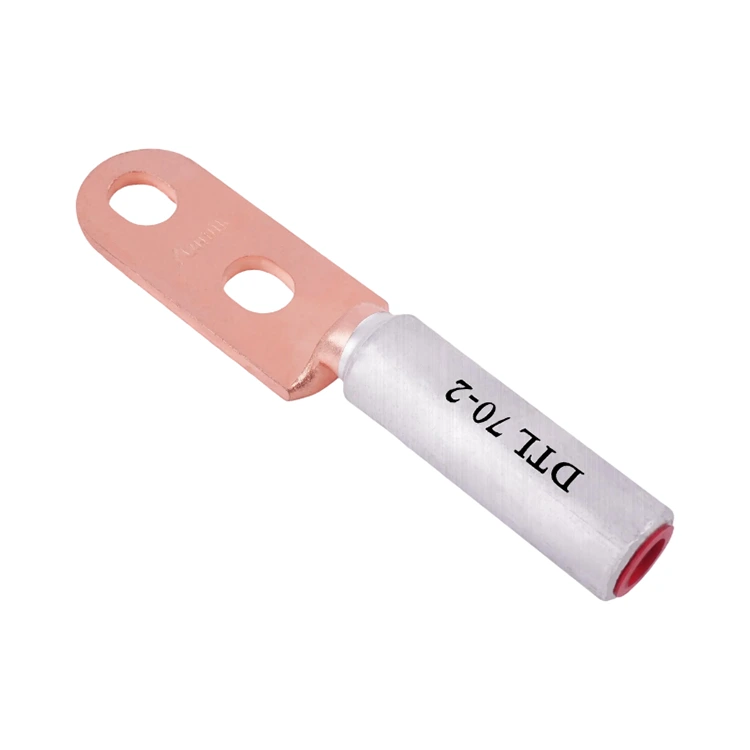

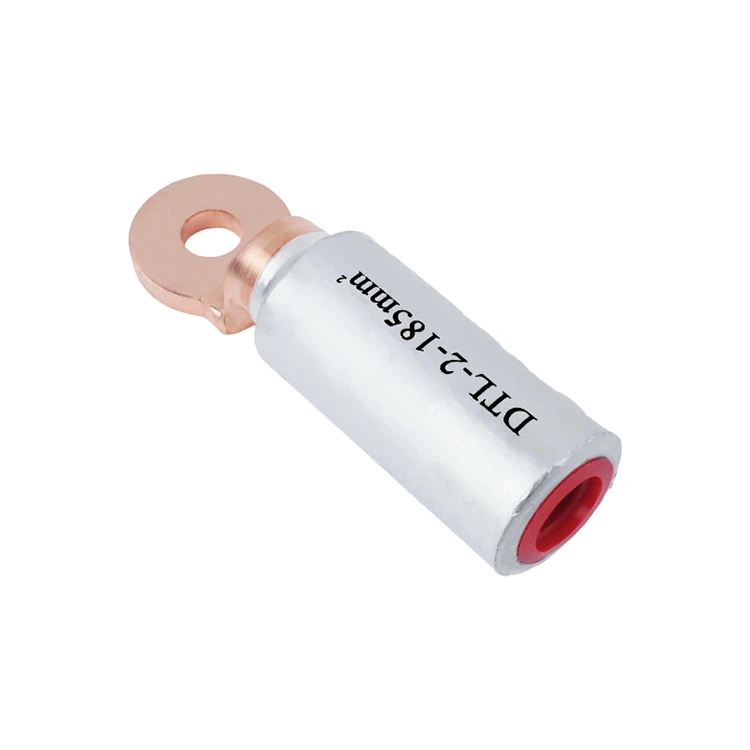

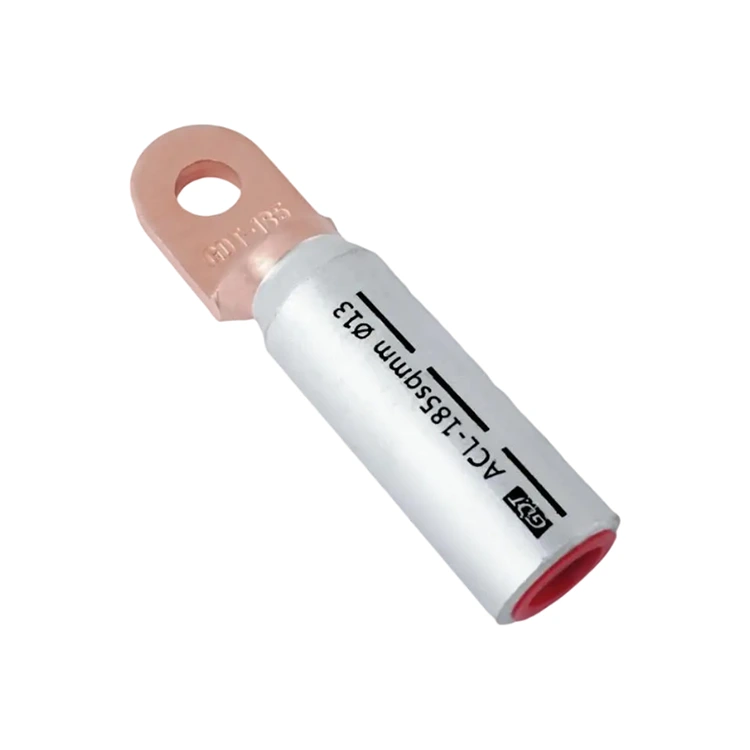

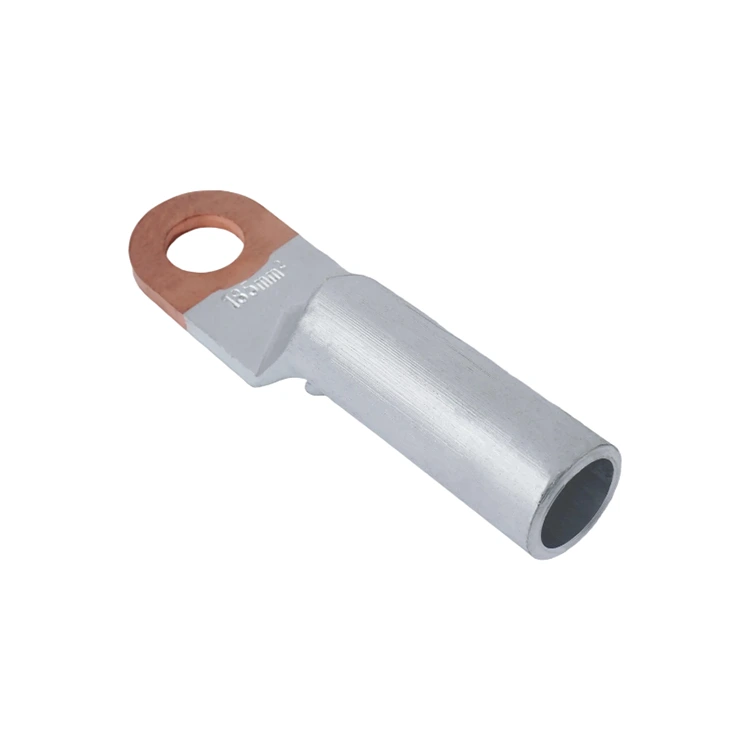

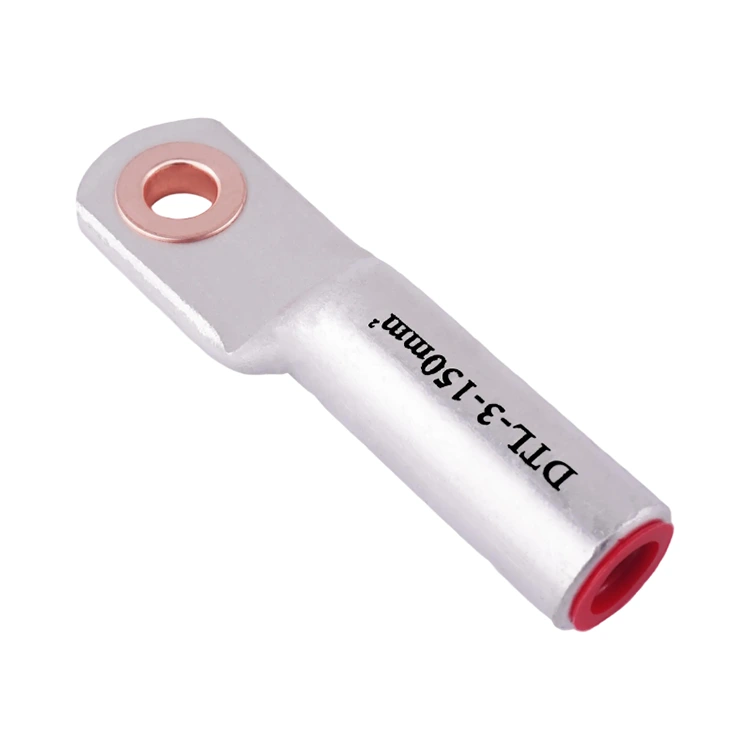

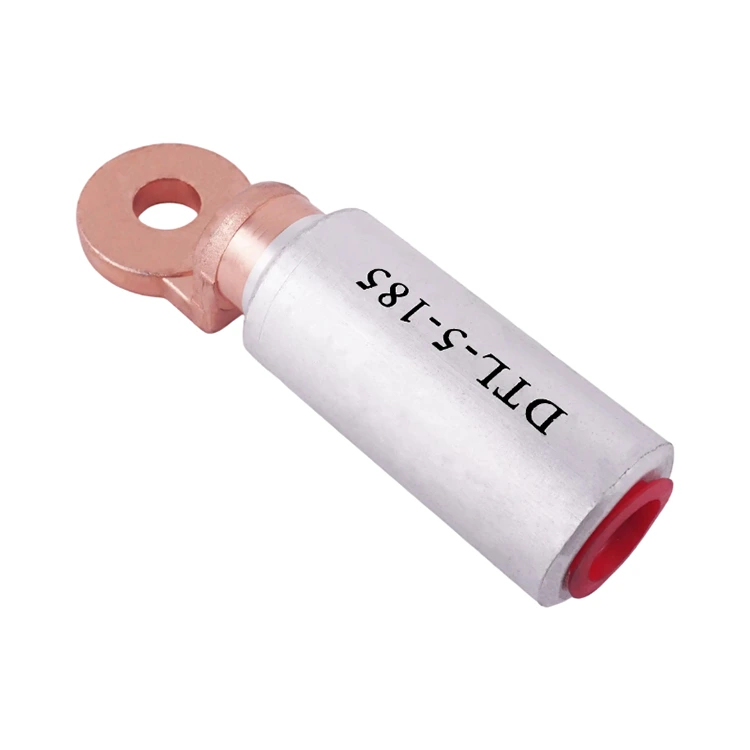

Copper Aluminum Transition Terminal

The Copper Aluminum Transition Terminal represents the core of bimetallic connection technology—a permanently bonded copper-to-aluminum transition that enables safe, reliable connections between dissimilar metal conductors. By Zenko factory from China, this terminal utilizes explosion welding to create an atomic-level bond at the Cu-Al interface, far superior to mechanical or brazed joints.

Unlike mechanical connectors that rely on clamping force, the Copper Aluminum Transition Terminal achieves its connection through a true metallurgical bond. The copper and aluminum sections are permanently joined at the molecular level—no adhesives, no solder, no mechanical fasteners at the transition zone. This bond cannot loosen, degrade, or separate over time.

Explosion Welding Technology

The manufacturing process behind every Copper Aluminum Transition Terminal:

●Controlled detonation:  Precisely calibrated explosive charge drives copper plate into aluminum at extreme velocity

●Jet formation:  Impact creates a high-velocity metal jet that cleans both surfaces instantly

●Atomic bonding:  Clean surfaces fuse under extreme pressure—creating a true metallurgical bond

●Wavy interface:  Characteristic wavy bond line provides mechanical interlocking in addition to atomic bonding

●100% ultrasonic inspection:  Every terminal is tested to verify complete bond integrity

Key Features

●True metallurgical bond:  Atomic-level Cu-Al fusion—no intermediate layers or adhesives

●Wavy bond interface:  Mechanical interlocking adds strength beyond atomic bonding

●Zero galvanic corrosion:  No direct Cu-Al contact at transition point

●Ultra-low resistance:  Bond resistance ≤0.05mΩ—lower than any mechanical joint

●Thermal stability:  Bond withstands -40°C to +125°C cycling without degradation

●Full-size range:  2.5mm² to 240mm² with M4 through M10 stud options

Cross-Industry Applications

The Copper Aluminum Transition Terminal serves as a universal solution wherever copper and aluminum conductors must be connected:

● Electrical power distribution and transmission

● Renewable energy (solar, wind, ESS)

● Automotive and electric vehicle manufacturing

● Industrial automation and control systems

● Building wiring and construction

● Marine and offshore installations

● Railway and transportation infrastructure

Quality Assurance

Every Copper Aluminum Transition Terminal from Zenko undergoes comprehensive quality verification:

●Ultrasonic testing:  100% bond integrity inspection on every production unit

●Shear testing:  Bond shear strength ≥80MPa per IEC 61238-1

●Resistance measurement:  Each terminal verified for ≤0.05mΩ bond resistance

●Thermal cycling test:  Batch sampling to 2000+ cycles

●Visual inspection:  Surface finish, plating quality, dimensional accuracy

●Pull test:  Crimped connection mechanical strength verification

Why Choose Zenko?

Zenko has mastered explosion welding technology since 2017, producing millions of bimetallic terminals annually. Our Copper Aluminum Transition Terminal is the industry benchmark for bond quality and consistency.

●Explosion welding expertise:  7+ years of specialized bimetallic manufacturing

●Consistent bond quality:  CPK ≥1.67 on critical bond parameters

●ISO 9001 certified:  Full quality management system

●Global certifications:  UL, TUV, CE, IEC recognized

●Technical partnership:  Application engineering support for optimal terminal selection
