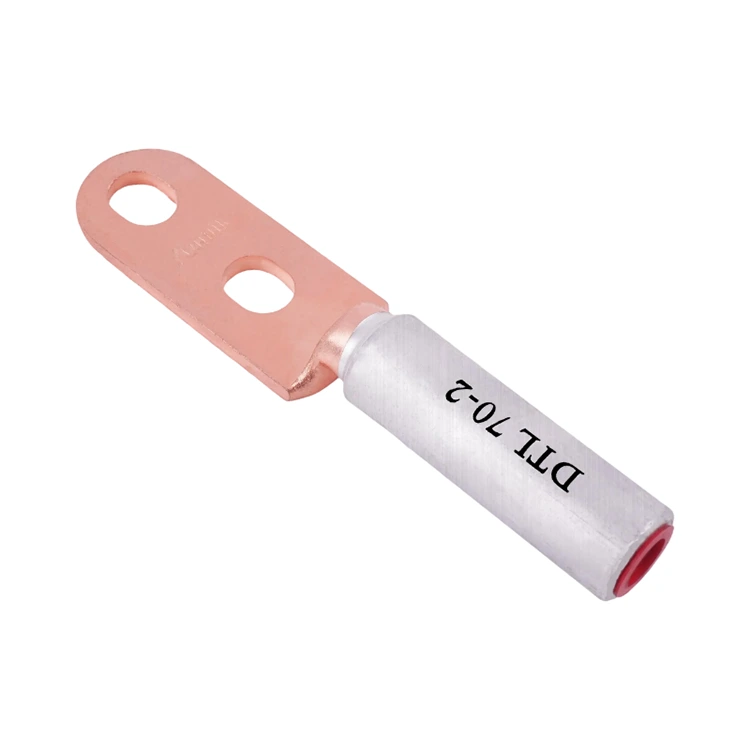

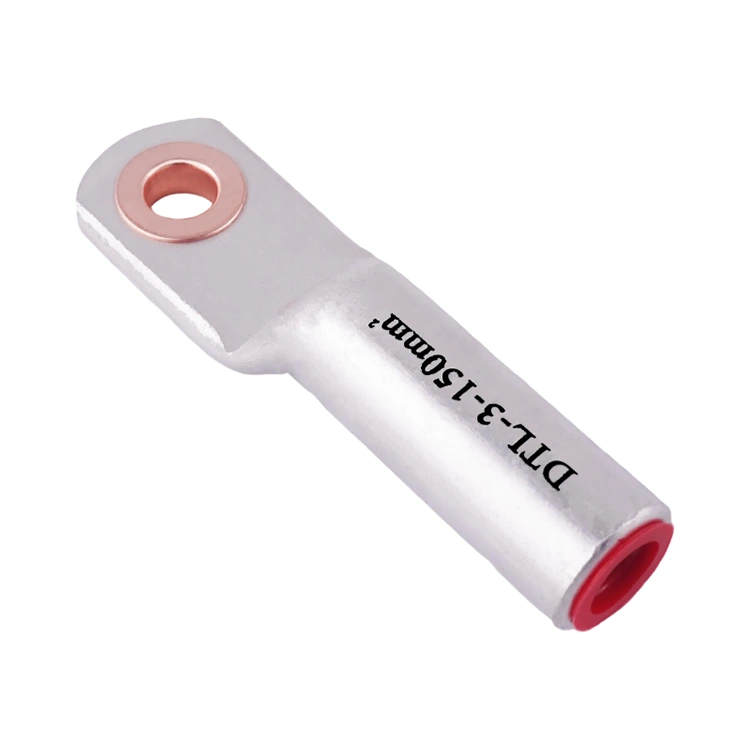

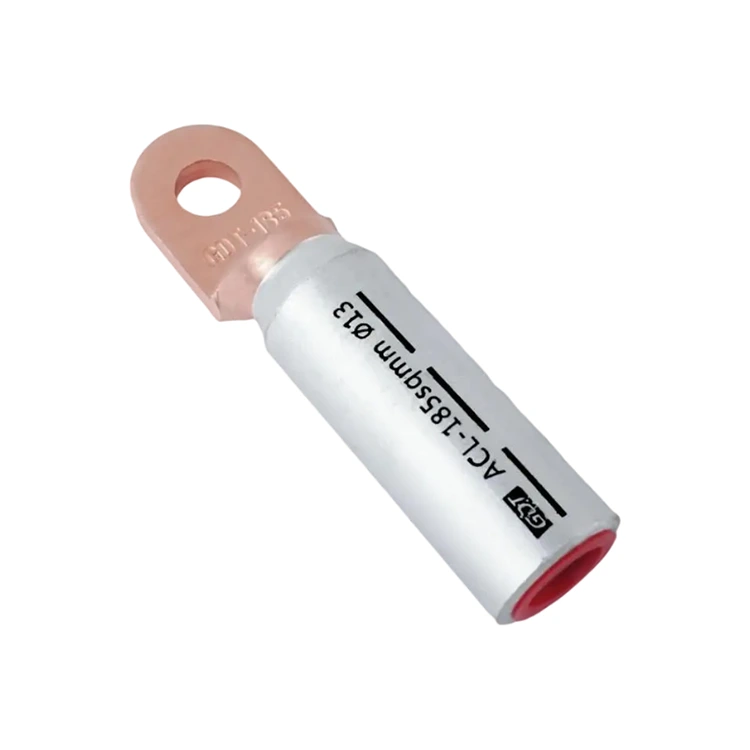

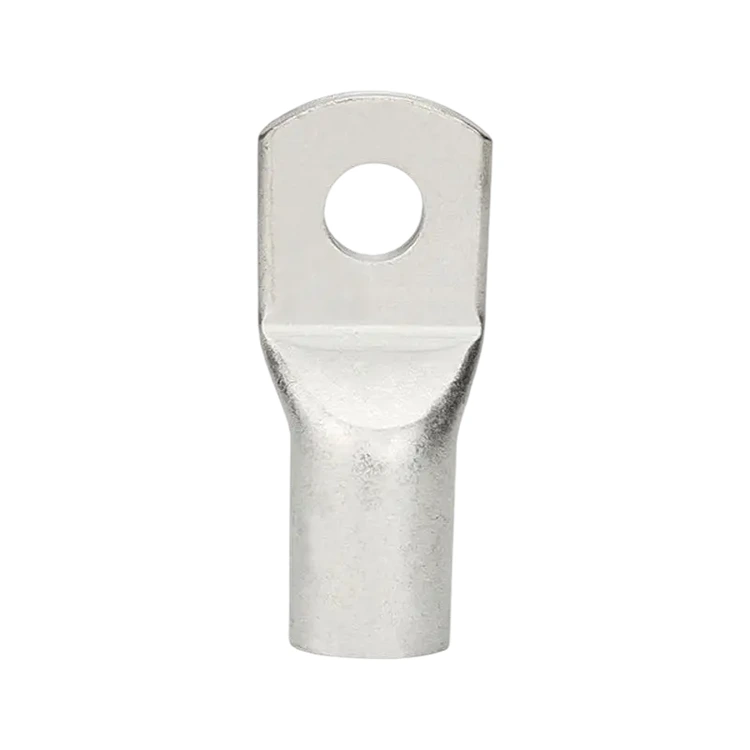

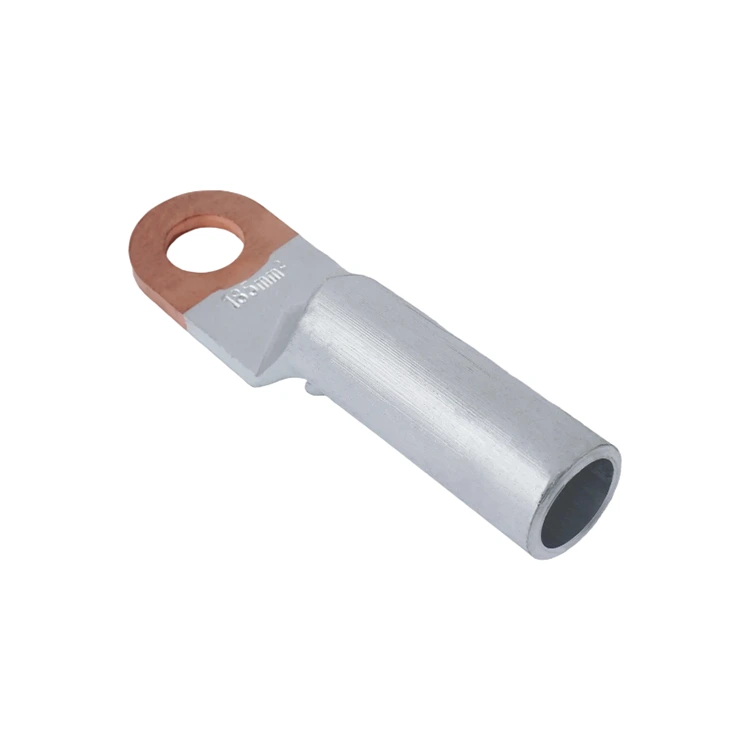

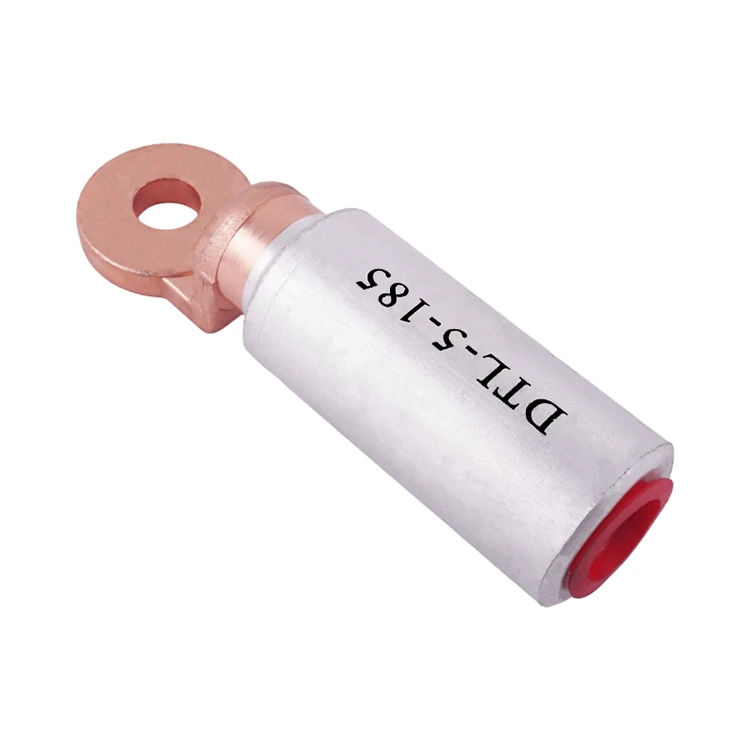

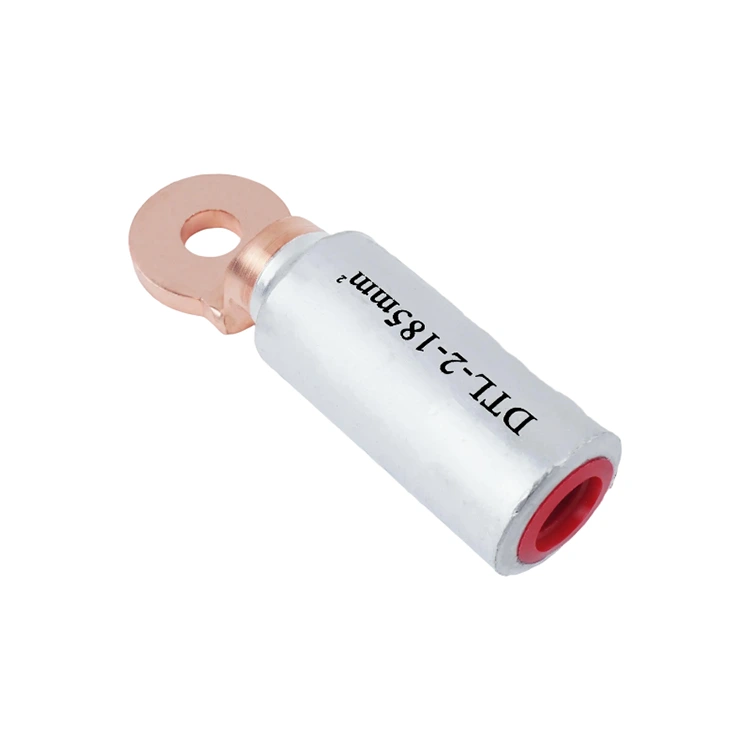

Copper Aluminum Terminal for Electrical Cabinet

The Copper Aluminum Terminal for Electrical Cabinet is a purpose-built bimetallic connector for internal wiring of electrical cabinets and enclosures. Manufactured by Zenko using explosion welding technology, it creates a permanent copper-aluminum transition that prevents galvanic corrosion in confined cabinet environments where temperature cycling and humidity are common.

Inside electrical cabinets, the Copper Aluminum Terminal for Electrical Cabinet enables flexible wiring architecture by allowing copper control wiring to connect directly to aluminum busbars or feeders. This reduces material costs and simplifies cabinet wiring layouts without compromising electrical reliability.

Challenges in Cabinet Wiring

Electrical cabinets present unique challenges for wire connections:

●Confined space:  Limited room for connections requires compact terminal designs

●Temperature cycling:  Components heat up during operation and cool down during shutdown

●Humidity:  Condensation can form inside cabinets, accelerating corrosion

●Vibration:  Contactors and relays generate vibration that can loosen connections

●Maintenance access:  Connections must be reliable to minimize maintenance frequency

Key Features

●Explosion-welded Cu-Al bond:  Permanent metallurgical connection—no degradation

●Compact design:  Short barrel length fits tight cabinet spaces

●Tin-plated surface:  Extra corrosion protection against cabinet condensation

●Temperature rated:  -40°C to +105°C for cabinet thermal cycling

●Multiple styles:  Ring, fork, bullet, flag terminals for various cabinet needs

●Color coding:  Quick wire gauge identification during assembly

Cabinet Types & Applications

Selection Guide

Choosing the right Copper Aluminum Terminal for Electrical Cabinet depends on your cabinet wiring requirements:

●Wire gauge matching:  Select terminal wire range to match both copper and aluminum conductor sizes

●Stud size:  Match terminal bolt hole to cabinet busbar or equipment stud

●Terminal style:  Ring terminals for fixed connections, fork for quick-access maintenance

●Current rating:  Ensure terminal ampacity exceeds circuit operating current

●Cabinet environment:  Use tin-plated terminals in humid or outdoor cabinets

●Space constraints:  Shorter barrel terminals for compact cabinet layouts

Standards & Compliance

The Copper Aluminum Terminal for Electrical Cabinet from Zenko meets international standards for electrical cabinet components:

●IEC 61238-1:  Bimetallic connector performance standard

●IEC 60947-1:  Low-voltage switchgear and control gear

●UL 486A:  Wire connector safety standard

●ISO 9001:  Quality management system certification

●ROHS/REACH:  Environmental compliance

Why Choose Zenko?

Zenko provides comprehensive bimetallic connector solutions for electrical cabinet manufacturers. Our Copper Aluminum Terminal for Electrical Cabinet products are trusted by panel builders and OEMs worldwide. Zenko offers factory-direct pricing, custom specifications, and fast delivery for production line continuity.

●Panel builder experience:  Specialized in cabinet wiring connectors since 2017

●Quality:  100% ultrasonic weld inspection on every terminal

●Custom sizes:  OEM specifications for any cabinet design

●Fast delivery:  Reliable supply chain for production scheduling

●Technical support:  Engineering assistance for terminal selection
