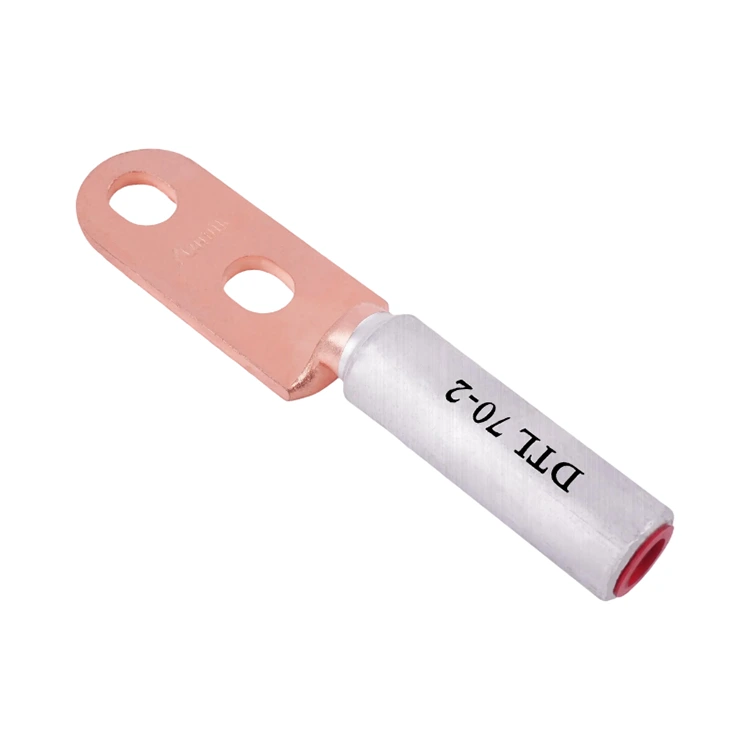

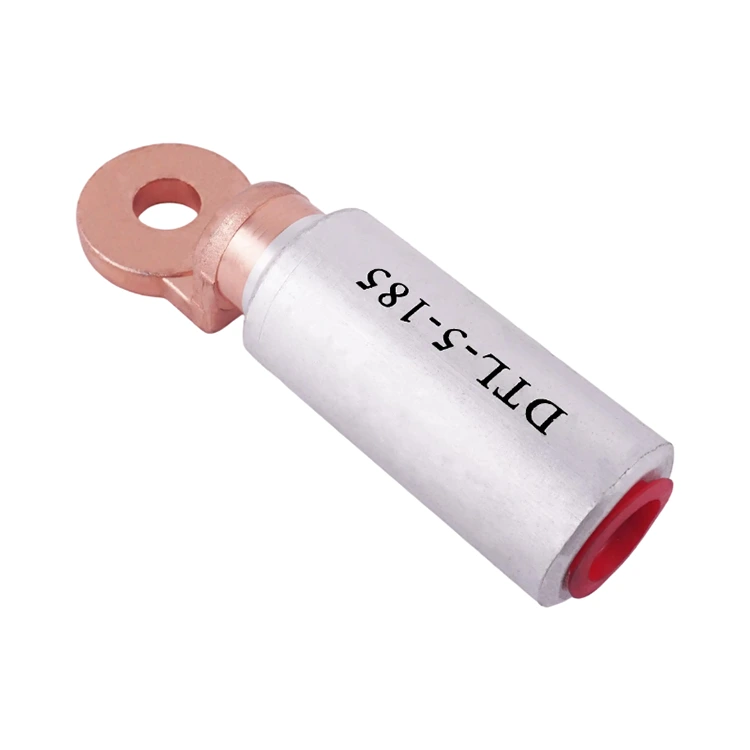

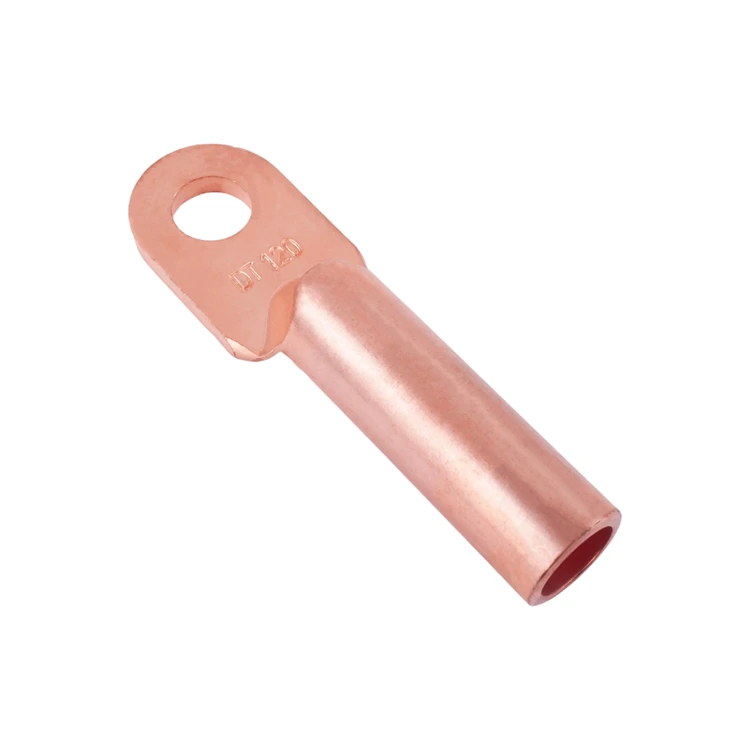

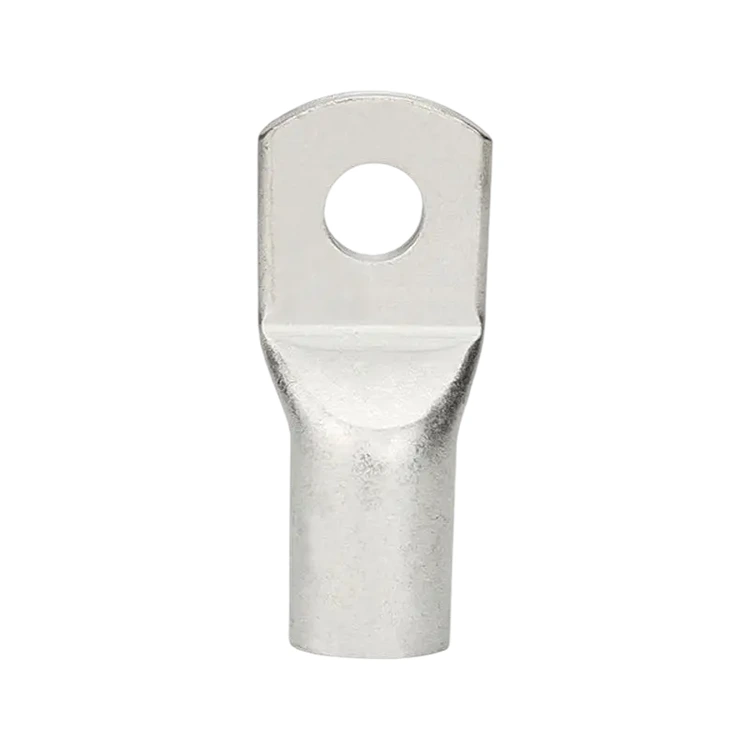

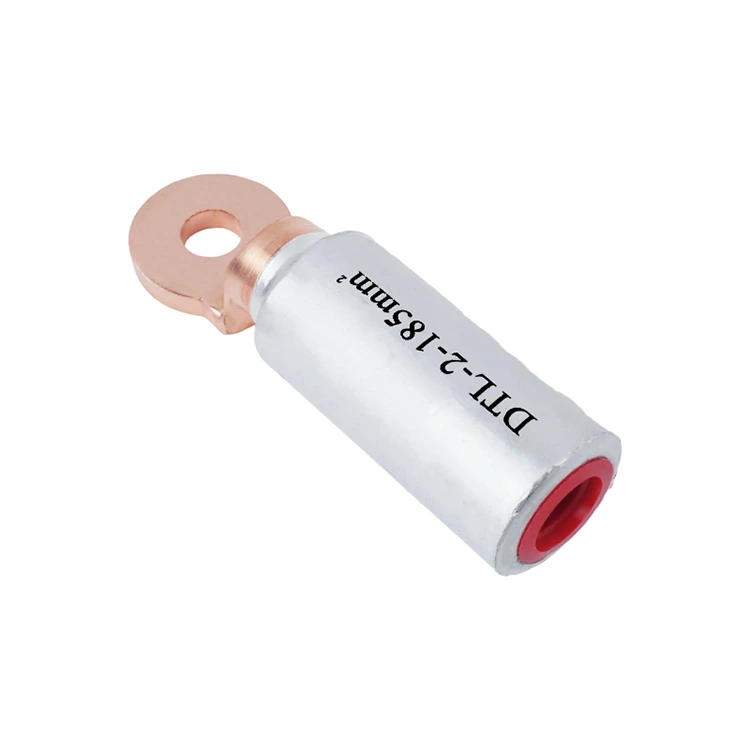

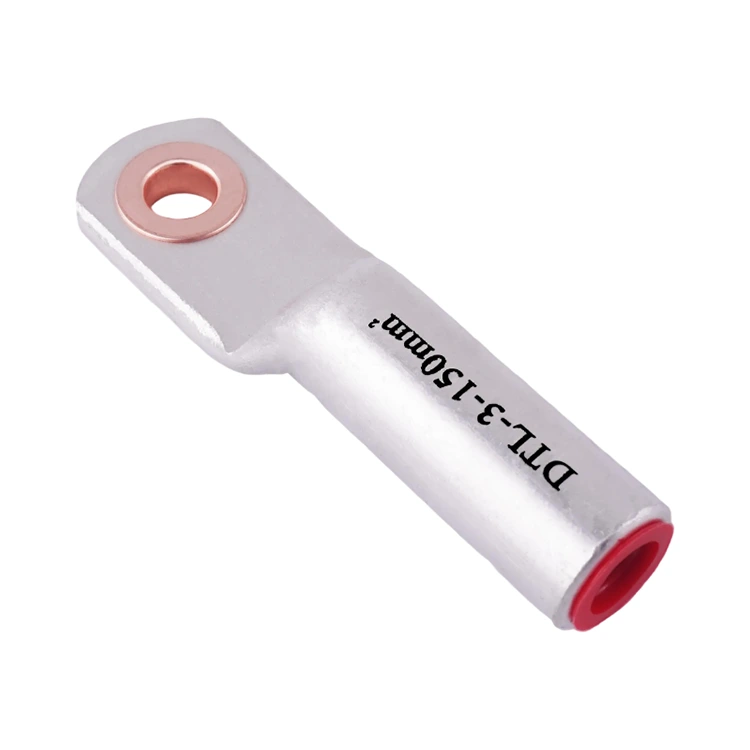

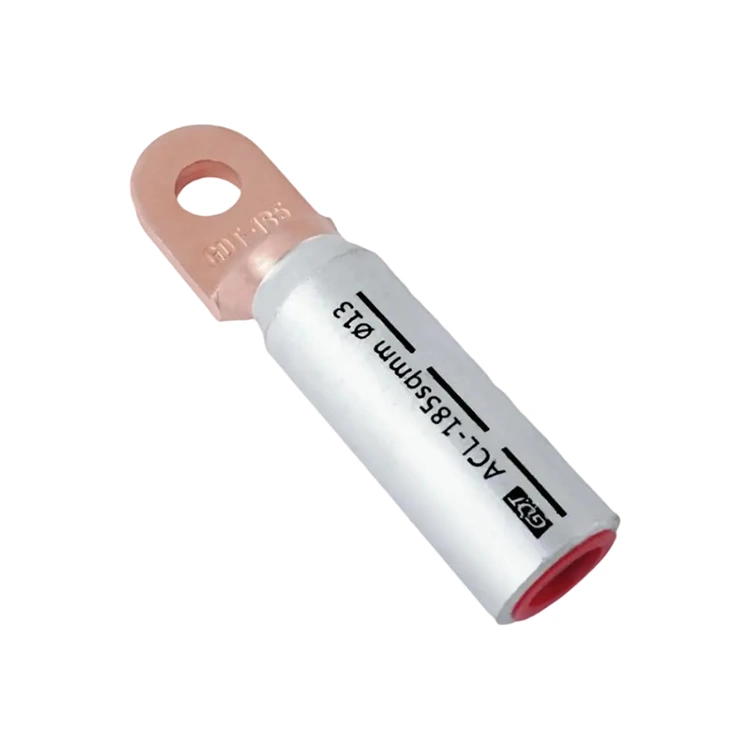

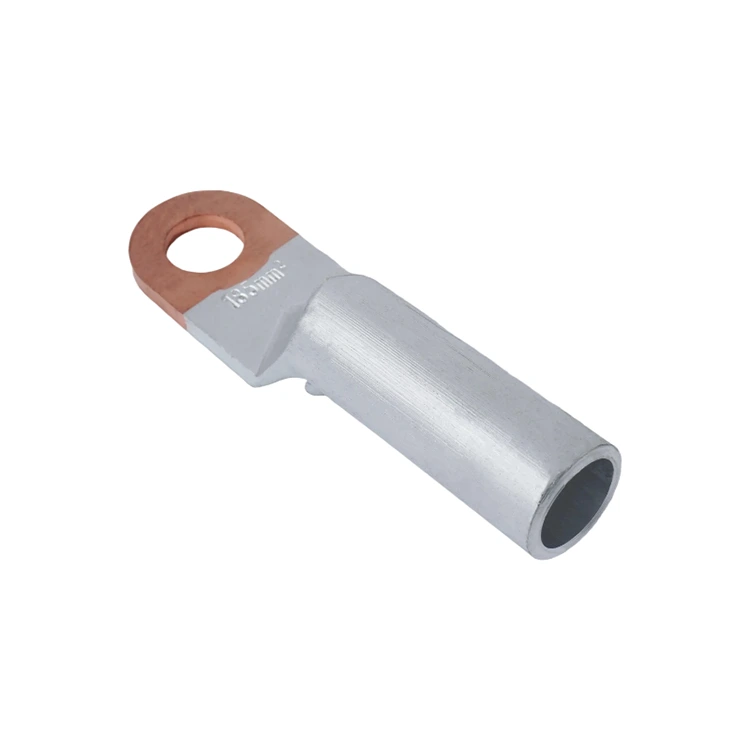

Plated Copper Aluminum Wiring Terminal

As a professional Copper Aluminum Wiring Terminal manufacturer and supplier in China, Zenko engineers the Plated Copper Aluminum Wiring Terminal using explosion welding technology to create a permanent metallurgical bond between copper and aluminum. This factory-welded transition eliminates direct metal-to-metal contact between dissimilar metals, preventing galvanic corrosion and ensuring stable electrical performance over time.

The tin-plated surface of the Plated Copper Aluminum Wiring Terminal offers superior protection compared to standard unplated bimetallic connectors. Additional benefits include:

●Enhanced corrosion protection:  Tin plating acts as a protective barrier against moisture and oxidation

●Improved conductivity:  Tin surface maintains low contact resistance over time

●Easier soldering:  Tin surface is compatible with solders for permanent connections

●Wider temperature range:  Performs reliably from -40°C to +120°C

●Longer service life:  Extends connection longevity in challenging environments

Key Features

●Tin-plated surface:  3-5μm thick tin coating for superior protection

●Explosion-welded bond:  Permanent Cu-Al metallurgical connection

●Pure copper section:  99.9% pure copper for compatibility

●Pure aluminum section:  1060/1070 grade aluminum

●Multiple styles:  Ring, fork, bullet, flag terminals available

●Color coding:  Easy identification by wire gauge

Applications

The Plated Copper Aluminum Wiring Terminal is suitable for various industrial and commercial wiring:

● Industrial power distribution and panel wiring

● Commercial building electrical systems

● Outdoor and landscape lighting

● Solar and renewable energy installations

● Marine and offshore electrical systems

● Wet and humid environment wiring

● Transportation infrastructure

● Utility and grid connections

Why Choose Zenko?

Zenko specializes in bimetallic connectors with advanced plating capabilities. The Plated Copper Aluminum Wiring Terminal reflects our commitment to quality and innovation.

●Factory capacity:  8,000m² manufacturing facility

●Quality system:  ISO 9001 certified production

●Testing:  100% inspection with ultrasonic testing

●Plating expertise:  Advanced tin plating processes

●Pricing:  Factory direct—no middlemen

●Global delivery:  Fast shipping worldwide

Installation

Crimping Steps

1. Strip insulation to barrel length

2. Insert conductor fully into barrel

3. Position in matched crimping die

4. Apply even pressure until compressed

5. Verify secure connection

Tips

● Use ratcheting crimping tool for consistent results

● Match die size to terminal specifications

● Inspect connection after crimping

● Apply dielectric grease in wet environments

FAQ

Q: What makes the Plated Copper Aluminum Wiring Terminal different?

A: The tin plating provides additional corrosion protection compared to standard bimetallic connectors, making it ideal for outdoor and humid environments.

Q: Can I solder this terminal?

A: Yes, the tin-plated surface is compatible with standard soldering for permanent installations. Zenko recommends soldering for added reliability.

Q: What is the warranty?

A: Zenko provides 5-year warranty on all plated bimetallic connectors when properly installed.

Q: Is custom sizing available?

A: Yes, we offer OEM/ODM services. Contact Zenko engineering team for custom specifications.
