Ultimate Guide to Red Copper Capillary Tubes: Applications, Standards & Selection

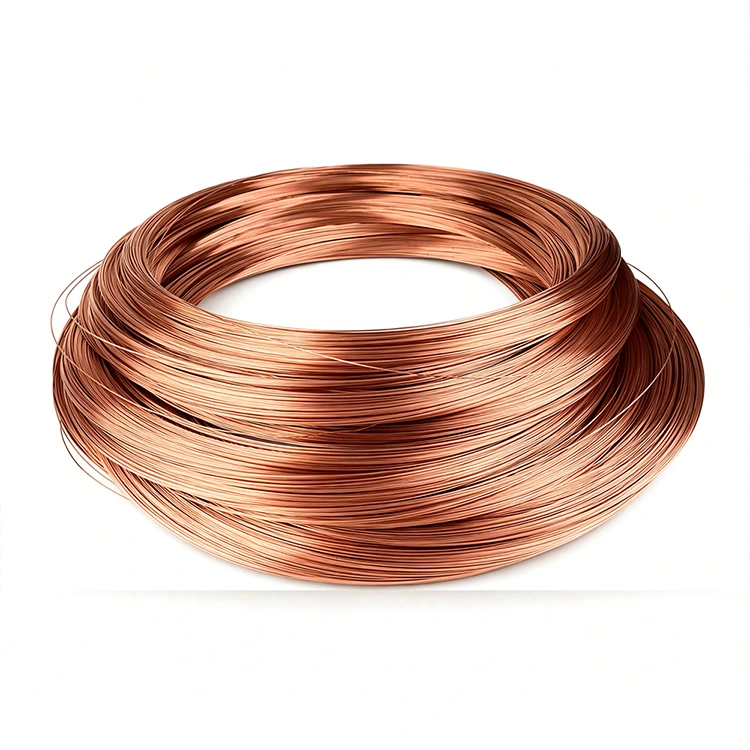

1. What Is a Red Copper Capillary Tube? – Definition & Core Properties

A Red Copper Capillary Tube is a precision-drawn, seamless tube made from high-purity copper (≥99.90% Grade A cathode copper) . Its distinctive reddish color comes from the unalloyed, oxygen-free copper composition, which provides a unique balance of mechanical strength, flexibility, and thermal conductivity. Unlike standard pipes, capillary tubes feature small diameters (often below 6.35 mm) and precisely controlled inner bores, making them ideal for metering refrigerant flow, conveying medical gases, and serving as sensing lines in instrumentation .

The manufacturing process involves continuous casting, rolling, and precision drawing to achieve stable dimensions and a smooth internal surface. This meticulous production ensures that Zenko's red copper capillary tubes meet the stringent requirements of modern HVAC, medical, and plumbing systems .

2. Why Choose Red Copper? – 5 Key Performance Advantages

Red copper is not just a material; it's a solution. Its inherent properties make it superior to other metals like steel or aluminum for critical applications. Below are five key advantages:

• Exceptional Thermal Conductivity: With a thermal conductivity of ~401 W/m·K, red copper enables rapid and efficient heat exchange, making it the top choice for condensers and evaporators in refrigeration .
• Natural Antimicrobial Properties: Copper surfaces continuously kill over 99.9% of bacteria, including MRSA and E. coli, enhancing hygiene in medical gas and potable water systems .
• Superior Corrosion Resistance: Red copper forms a protective patina, resisting corrosion from moisture, chemicals, and urban atmospheres. This ensures decades of reliable service with minimal maintenance .
• Excellent Ductility & Formability: It can be easily bent, flared, and drawn without cracking. This allows for complex routing and reduces the need for joints, minimizing potential leak points .
• 100% Recyclable & Sustainable: Copper is infinitely recyclable without any loss of performance, making it an environmentally responsible choice for green building projects.

3. Critical Applications Across Industries

The versatility of the red copper capillary tube is evident in its wide range of applications, from residential air conditioners to life-saving medical equipment.

3.1 HVAC & Refrigeration Systems

Red copper capillary tubes are the unsung heroes of the HVAC industry. They function as the expansion device in many air conditioning and refrigeration systems, precisely controlling the flow of refrigerant from the condenser to the evaporator . This precise pressure drop is essential for optimal cooling efficiency.

• Applications: Residential and commercial AC units, heat pumps, refrigerators, freezers, and automotive air conditioning.
• Key Benefits: High burst pressure, fatigue resistance, and ability to withstand thermal cycling .
• Zenko Advantage: Available in continuous coil lengths (reducing joints) with dehydrated and nitrogen-charged packaging to prevent moisture and oxidation .

For HVAC contractors, using a high-purity capillary tube directly translates to fewer callbacks and higher system reliability. Meeting standards like ASTM B280 and EN 12735 ensures compatibility with global system designs .

3.2 Medical & Precision Instrument Tubing

The antimicrobial and non-reactive nature of red copper makes it indispensable for medical gas systems . Oxygen, nitrous oxide, and medical air must be delivered through impeccably clean tubing to ensure patient safety.

• Applications: Hospital oxygen supply, nitrous oxide delivery, compressed air systems, laboratory instruments.
• Key Benefits: Prevents bacterial growth, meets strict cleanliness standards (NFPA 99, HTM 02-01) .
• Zenko Advantage: Bright annealed finish for a sanitary surface, micro-bore options with wall thickness down to 0.3 mm, and full material traceability .

Medical gas systems require rigorous adherence to safety standards. Copper's proven track record in this field, supported by certifications like ASTM B819, gives specifiers and installers peace of mind .

3.3 Plumbing, Gas Distribution & Water Supply

Beyond HVAC and medical, red copper tubing is a cornerstone of modern building services. Its durability and resistance to dezincification make it an ideal material for plumbing and gas distribution networks .

• Applications: Potable water supply, LPG and natural gas lines, solar heating systems, fire sprinkler systems.
• Key Benefits: Long service life (over 50 years), safe for drinking water, and high resistance to pitting and stress corrosion .
• Zenko Advantage: Meets ASTM B88, ASME B16.22, and EN 1057 standards. Available in Type K, L, and M wall thickness grades, with soft, half-hard, and hard tempers to suit any bending requirement.

For global contractors, Zenko provides stable supply with coil weights ranging from 15 kg retail packs to 500 kg industrial coils, facilitating efficient logistics and inventory management.

4. Customization Options: Diameter, Wall Thickness, Coil & Temper

One of the major strengths of Zenko as a leading manufacturer is its capacity for OEM/ODM customization. No two projects are exactly alike, and the ability to tailor the product to specific requirements is invaluable. Key customization options include:

• Diameter: Wide range from micro-bore (down to 1.6 mm OD) up to 19.05 mm (3/4") and beyond for specific applications .
• Wall Thickness: Options from ultra-thin (0.3 mm) for capillary applications to thicker walls for high-pressure gas lines .
• Coil Length: Customizable lengths to minimize waste and match project requirements, from small 15 kg retail coils to 500 kg industrial bulk coils.
• Temper Level: Available in soft (annealed), half-hard, and hard temper to suit different bending and forming needs .
• Packaging: Dehydrated and nitrogen-charged options to ensure internal cleanliness and prevent oxidation during transport.

This flexibility ensures that engineers and contractors can source a product perfectly matched to their system's demands, enhancing efficiency and reliability.

5. Coil vs. Straight Tube: 4 Reasons to Choose Coil Form

For many applications, particularly in HVAC and plumbing, choosing a coil form offers significant advantages over straight tubes. This table summarizes the key benefits:

As the FAQ from Zenko highlights, choosing coil form is a strategic decision to lower leakage risk and improve installation efficiency on any project .

6. Frequently Asked Questions

Here are common queries about red copper capillary tubes, answered with precision.

7. Why Partner with Zenko – Quality & Global Supply

Choosing the right supplier is as critical as choosing the right material. As a leading China manufacturer, Zenko combines decades of metallurgical expertise with a global supply chain to deliver premium copper and copper alloy tubular products. Our commitment to quality is underpinned by:

• Uncompromising Material Sourcing: We use only ≥99.90% Grade A cathode copper, ensuring the highest purity and consistent performance .
• Advanced Manufacturing: Our continuous casting, rolling, and precision drawing processes guarantee stable dimensions, a smooth surface finish, and reliable performance .
• Global Certifications: We adhere to ISO 9001 standards and meet stringent international norms (ASTM, EN, NFPA), ensuring product acceptance worldwide.
• Full Traceability: Each batch comes with inspection documentation and material traceability, crucial for medical and high-specification industrial projects.
• Reliable Export Logistics: From small retail packs to 500 kg industrial coils, we ensure stable supply and secure packaging for global destinations.
