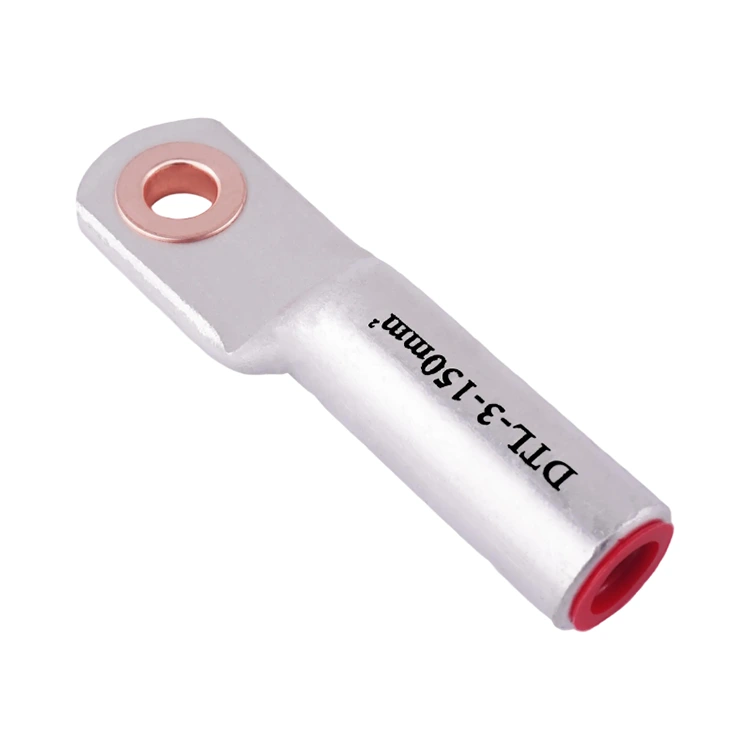

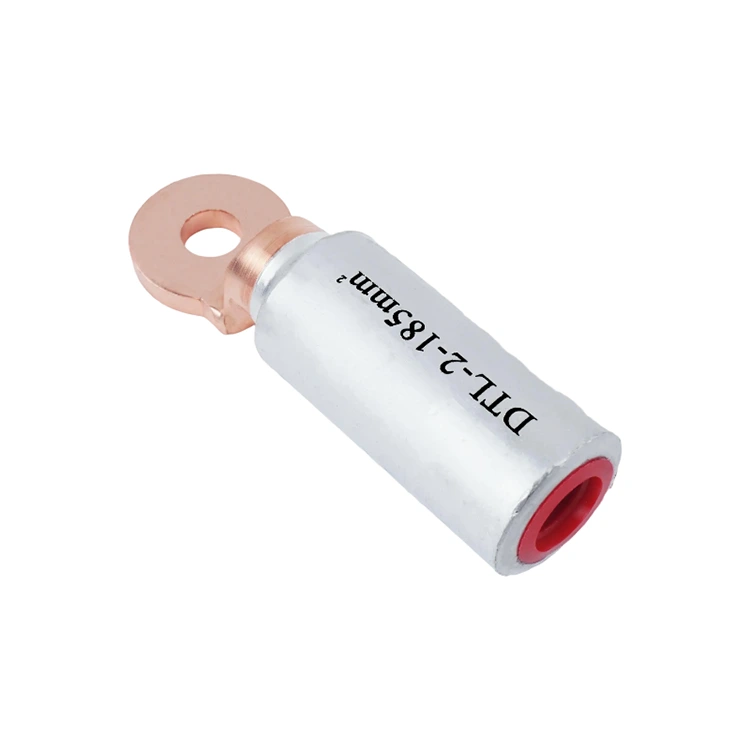

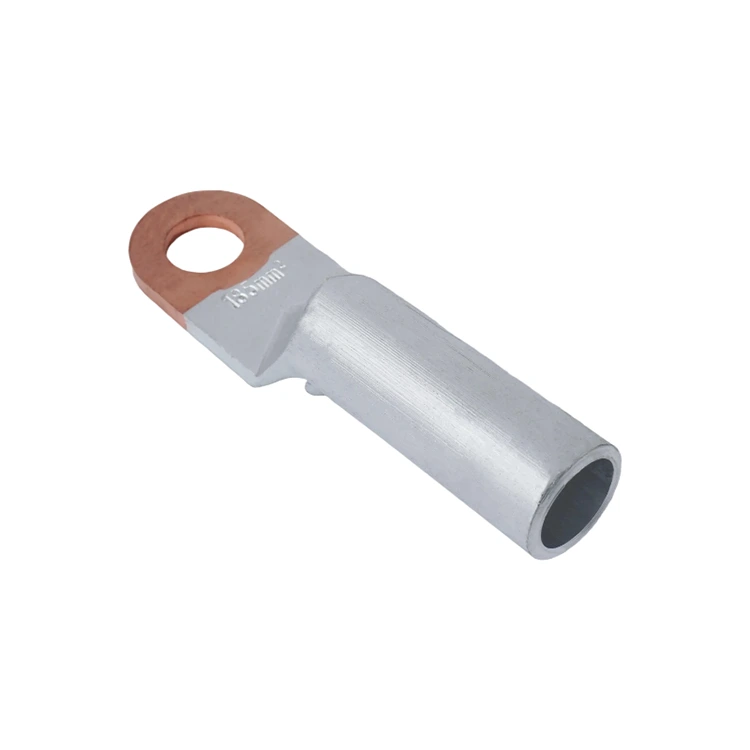

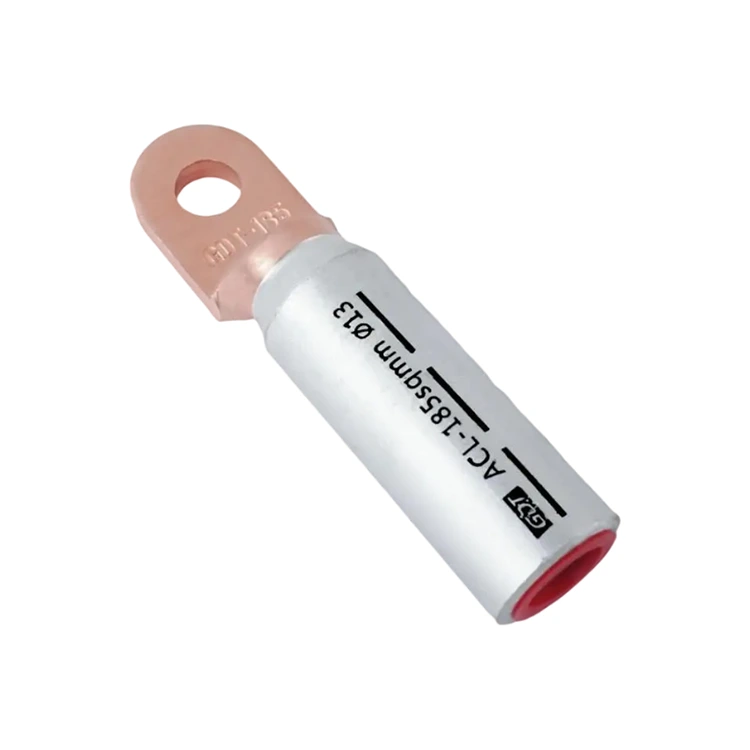

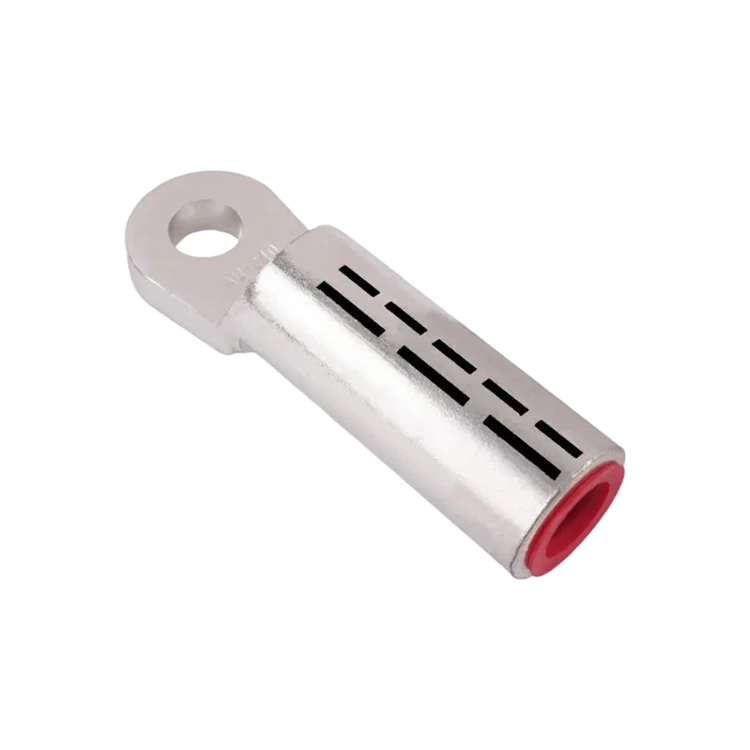

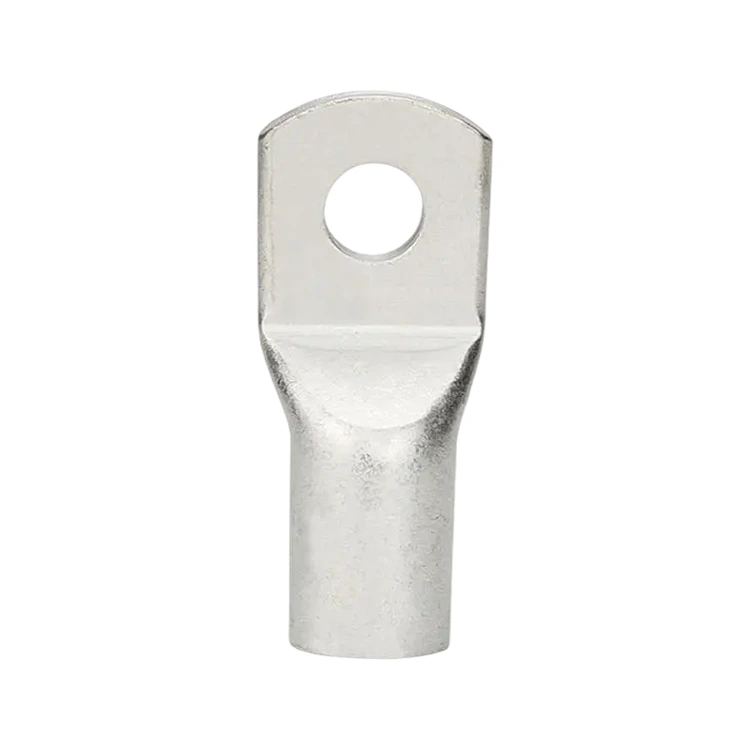

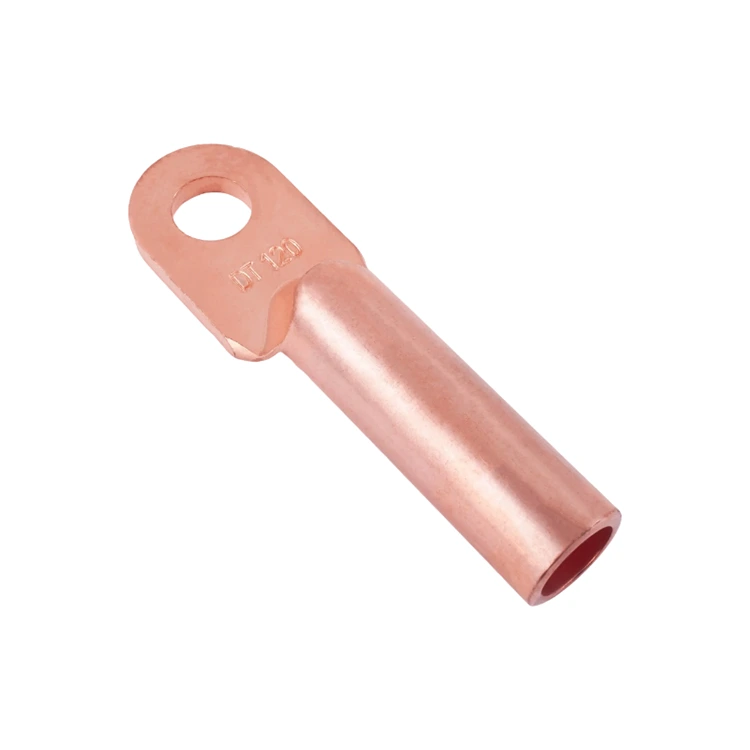

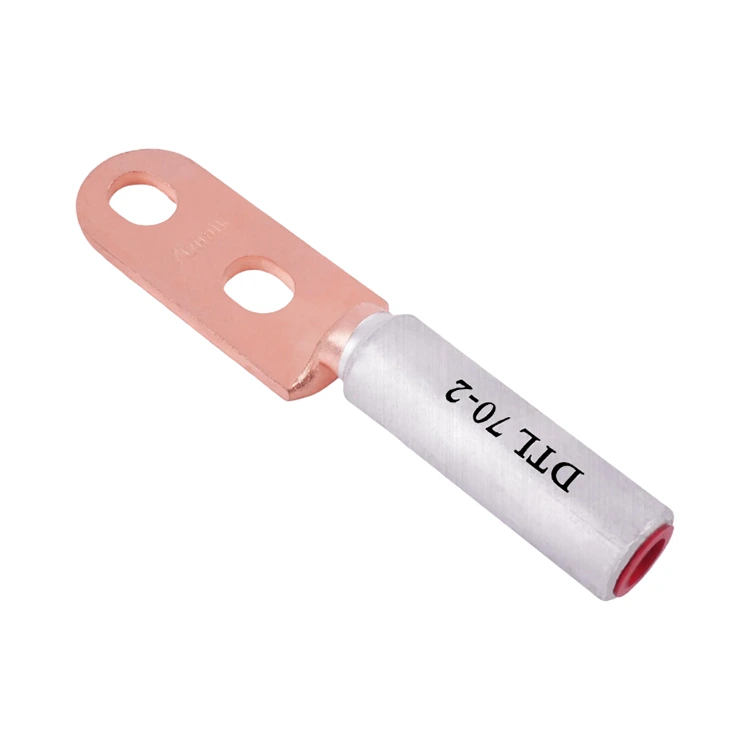

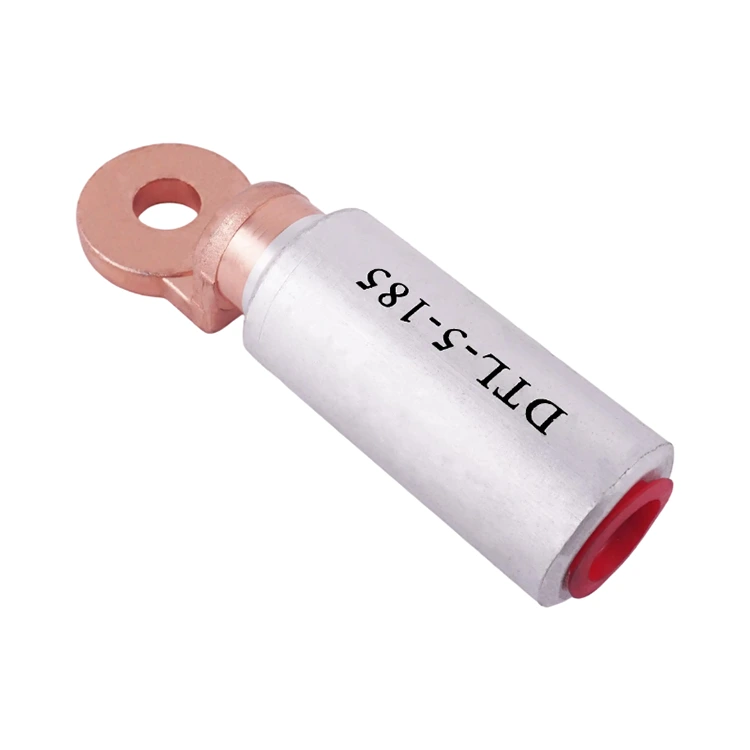

Copper Aluminum Terminal for Automotive Harness
As a professional manufacturer in China, Zenko would like to provide you customized Copper Aluminum Terminal for Automotive Harness, which is a specialized bimetallic connector engineered for connecting copper wires to aluminum wires in automotive electrical systems. Manufactured by advanced explosion welding technology, it effectively prevents galvanic corrosion and ensures reliable, long-lasting electrical connections in vehicle wiring harnesses.
In automotive applications, weight reduction is critical for improving fuel efficiency and extending electric vehicle range. The Copper Aluminum Terminal for Automotive Harness enables the use of lighter aluminum wiring while maintaining compatibility with existing copper infrastructure. This solution from Zenko factory, a leading China manufacturer and supplier is essential for modern automotive manufacturers seeking to optimize vehicle weight and performance.
Traditional copper-only terminals cannot be directly connected to aluminum wires due to galvanic corrosion. When dissimilar metals come into contact in the presence of moisture, rapid corrosion occurs, leading to increased electrical resistance, connection failure, safety hazards, and maintenance issues. The Copper Aluminum Terminal for Automotive Harness solves these problems with a factory-welded copper-aluminum transition that eliminates direct metal-to-metal contact.
Key Features
●Explosion-welded Cu-Al bond: Permanent metallurgical connection—no delamination
●99.9% pure copper section: Compatible with standard automotive copper wiring
●Tin-plated surface: Superior corrosion resistance for automotive environments
●Temperature rated: -40°C to +105°C for extreme conditions
●Vibration resistant: Meets automotive vibration standards
●Multiple configurations: Ring, fork, bullet, and flag terminals available
Material Comparison
|
Type |
Weight |
Corrosion |
Auto Suitability |
|
Cu-Al (Zenko) |
Light |
Excellent |
Recommended |
|
Copper Only |
Heavy |
Good |
Limited |
|
Aluminum Only |
Lightest |
Poor |
Not Recommended |
Technical Specifications
|
Parameter |
Value |
|
Wire Range |
2.5mm² – 240mm² |
|
Stud Sizes |
M4, M5, M6, M8, M10 |
|
Temperature |
-40°C to +105°C |
|
Voltage |
1000V max |
|
Salt Spray |
≥500 hours |
Applications
The Copper Aluminum Terminal for Automotive Harness is widely used in modern automotive:
● Electric vehicle (EV) battery pack wiring
● Hybrid vehicle power train harnesses
● On-board charger (OBC) connections
● Inverter and DC-DC converter wiring
● Charging system cable connections
● Motor and controller wiring
● Battery management system (BMS) wiring
Why Choose Zenko?
Zenko has been serving the automotive industry since 2017. Our Copper Aluminum Terminal for Automotive Harness solutions are trusted by major manufacturers worldwide.
●Manufacturing: 8,000m² facility with ISO 9001 certification
●Quality: 100% ultrasonic inspection of every weld
●Automotive standard: IATF 16949 compliant
●Pricing: Factory direct—no middlemen
●Shipping: Fast global delivery
●Support: Engineering team assistance
Installation Guide
Crimping
1. Strip cable to recommended length
2. Insert conductor fully into barrel
3. Position in matched crimping die
4. Apply even pressure until fully compressed
5. Inspect secure connection
Safety
● Always disconnect power before installation
● Use matched crimping tools
● Verify wire gauge compatibility
● Check local codes for compliance
FAQ
Q: Can Copper Aluminum Terminal for Automotive Harness work with any wire combination?
A: Yes, it connects copper to aluminum. For copper-to-copper, use standard copper terminals.
Q: What is the lifespan?
A: Properly installed Zenko terminals last 15-20+ years in automotive applications.
Q: Is OEM/ODM available?
A: Yes, we provide custom manufacturing to automotive specs. Contact our team.
Q: What certifications?
A: Zenko terminals are ISO 9001 certified and UL recognized, IATF 16949 compliant.
About Zenko Metal Products
Zhejiang Zenko Metal Products Co., Ltd. was established in 2017, specializing in precision metal tubing and bimetallic connectors. Our Copper Aluminum Terminal for Automotive Harness products serve automotive, EV, solar, and industrial sectors globally.
