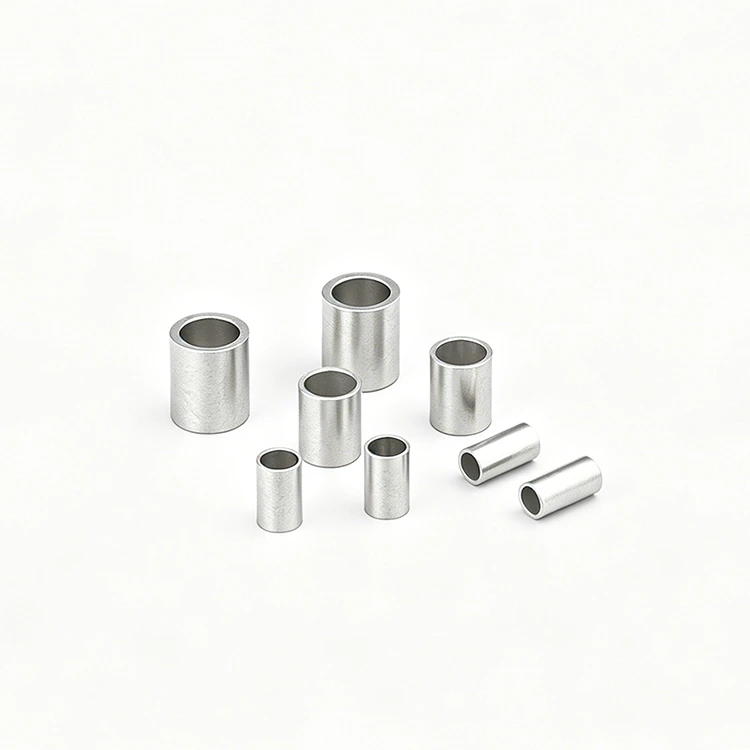

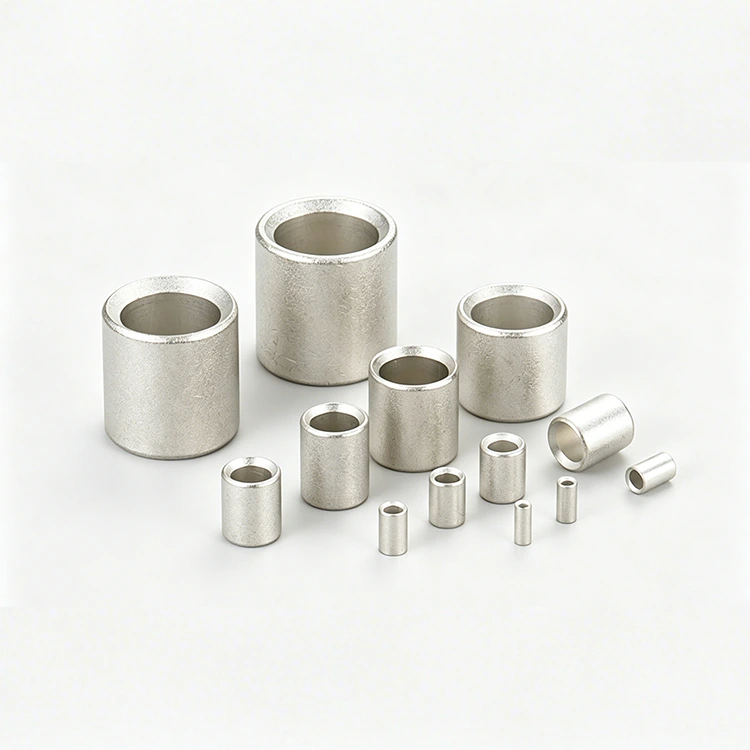

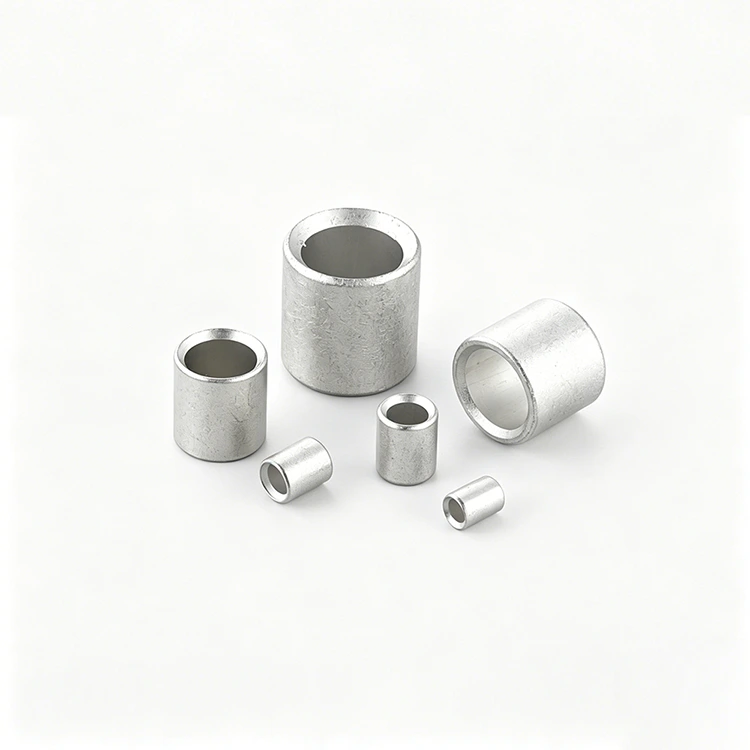

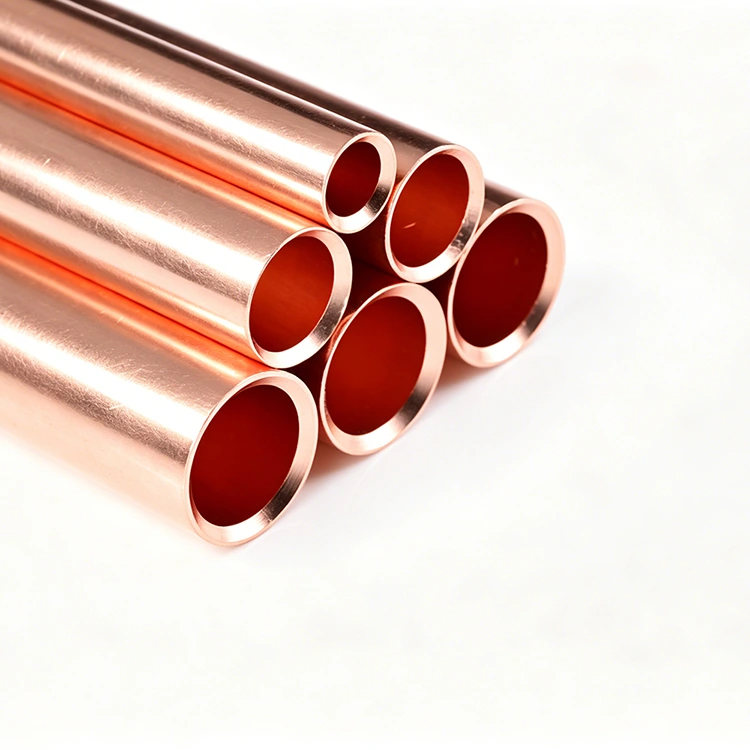

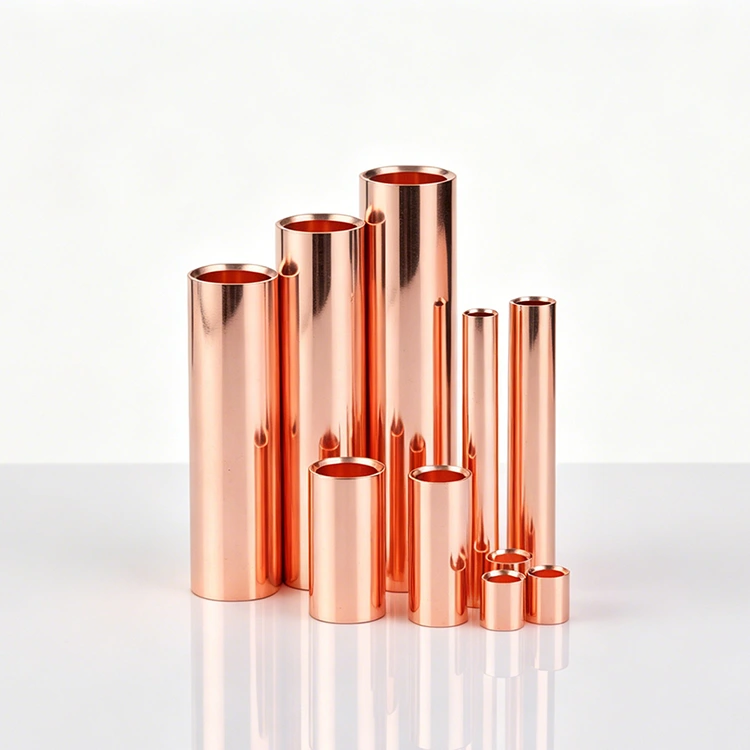

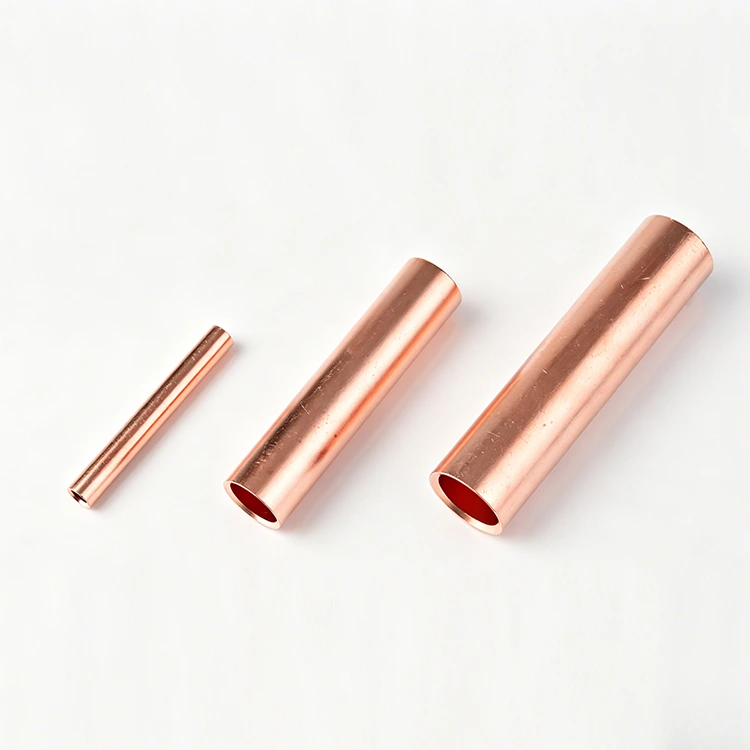

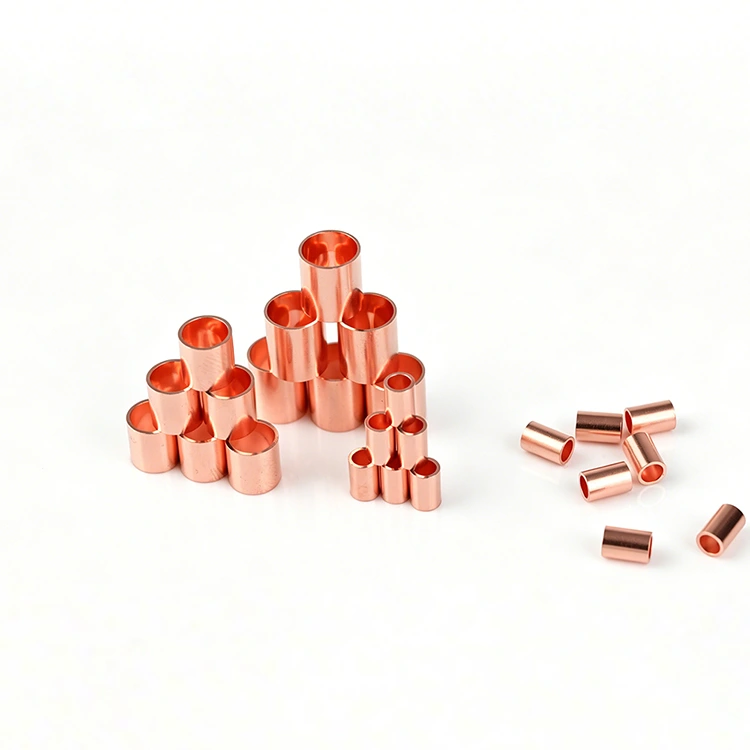

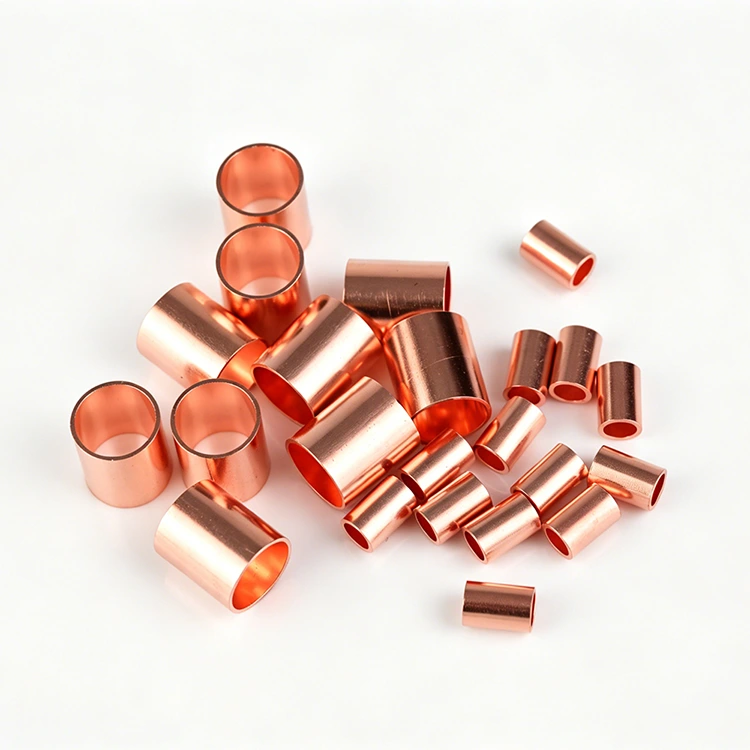

High Current Red Copper Butt Terminal

High quality High current red copper butt terminal is offered by China manufacturer Zenko. It serves as professional copper butt connectors tailored for new energy scenarios. Made of high-purity and high-conductivity copper material, they are perfectly applicable to photovoltaic, energy storage and new energy vehicle wiring systems. Adopting a lightweight structure to save installation space, the product covers a complete size range and supports customized specifications. With firm crimping performance and stable electrical contact, it fully meets the high-current connection requirements of various new energy equipment.

What is a High Current Red Copper Butt Terminal?

Zenko Factory’s high current red copper butt terminals are professional-grade, heavy-duty copper connectors engineered for both marine and new energy applications. Made from high-purity, high-conductivity red copper with advanced anti-oxidation treatment, these terminals offer exceptional moisture and salt spray resistance, stable electrical contact, and low heat generation under high-current loads. Designed to comply with power industry standards, they deliver secure, vibration-resistant crimped connections that stay tight without loosening, making them ideal for safe and reliable line connections in harsh environments.

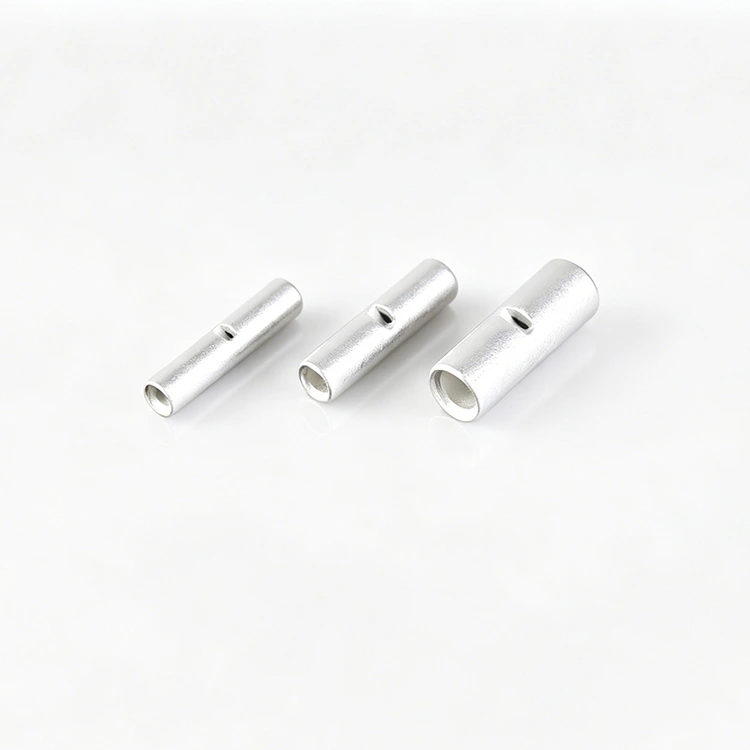

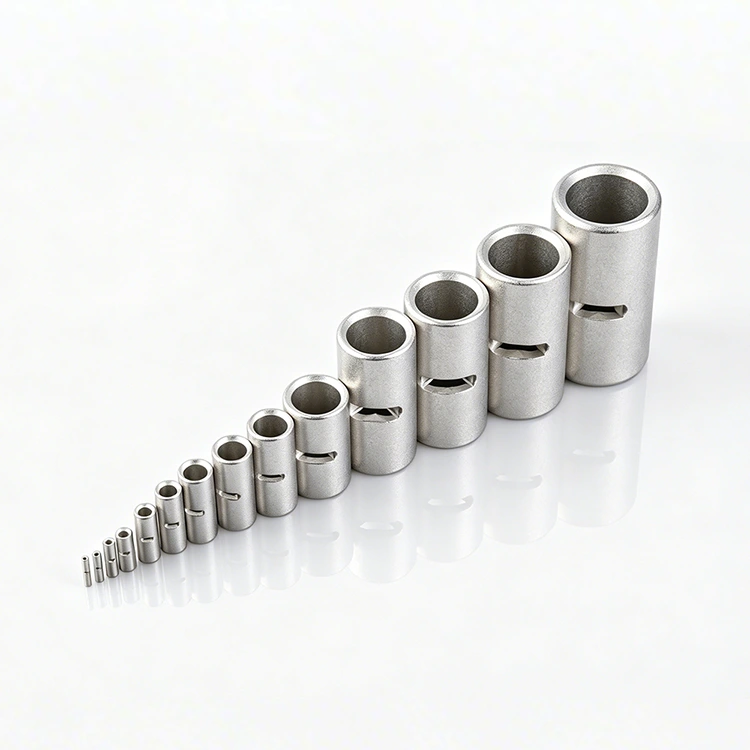

Non-Insulated Butt connector （Sizes can be customized）
Material:Red Copper(C1100/C1220)
ITEN NO.	Dimension(mm)				Cable Size
	L	D	d1	t	mm2	A.W.G
BN1.25T	15	3.32	1.85	0.75	0.5-1.5	22-16
BN2T	15	4.02	2.5	0.75	1.5-2.5	16-14
BN3.5T	15	5	3	0.95	2.5-4	14-12
BN5.5T	15	5.45	3.55	0.95	4-6	.12-10
BN8T	21	7	4.6	1.2	10	8
BN14T	26	9	6	1.5	16	6
BN22T	29	11.3	7.8	1.75	25	4
BN38T	32	13.2	9.5	1.85	35	2
BN60T	36	15.3	11.4	1.95	50	1/0
BN70T	37	17.5	13.3	2.2	70	2/0
BN80T	38	19.5	14.5	2.5	95	3/0
BN100T	38	22.1	16.4	2.85	120	4/0
BN150T	54	26.4	19.5	3.45	150	250-300
BN180T	57	28.5	21	3.75	185	300-350

Key Features & Benefits

● High Current Red Copper Construction: Made from 99.9% pure high-conductivity red copper, ensuring low heat generation and efficient power transmission under heavy loads.

● Marine-Grade Protection: Professional anti-oxidation and passivation treatment delivers excellent moisture-proof and salt spray resistance, suitable for marine distribution systems and harsh industrial environments.

● New Energy Optimized: Tailored for high-demand new energy scenarios, including photovoltaic systems, energy storage units, and electric vehicle wiring systems.

● Secure, Vibration-Resistant Crimping: Consistent crimp performance ensures permanent, tight connections that won’t loosen under vibration or thermal cycling.

● Space-Saving Lightweight Design: Compact, lightweight structure saves installation space while maintaining robust mechanical strength.

● Full Size Range & Customization: Complete size range available, with support for custom specifications to meet unique project requirements.

● Industry-Compliant Performance: Manufactured to meet power industry standards, providing stable contact performance and reliable circuit connections.

Technical Specifications

● Material: High-purity red copper

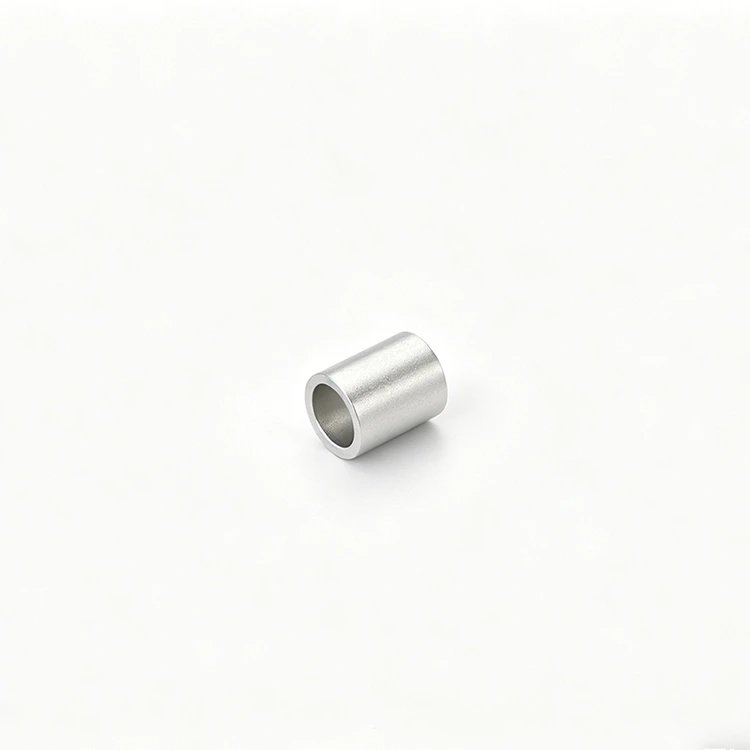

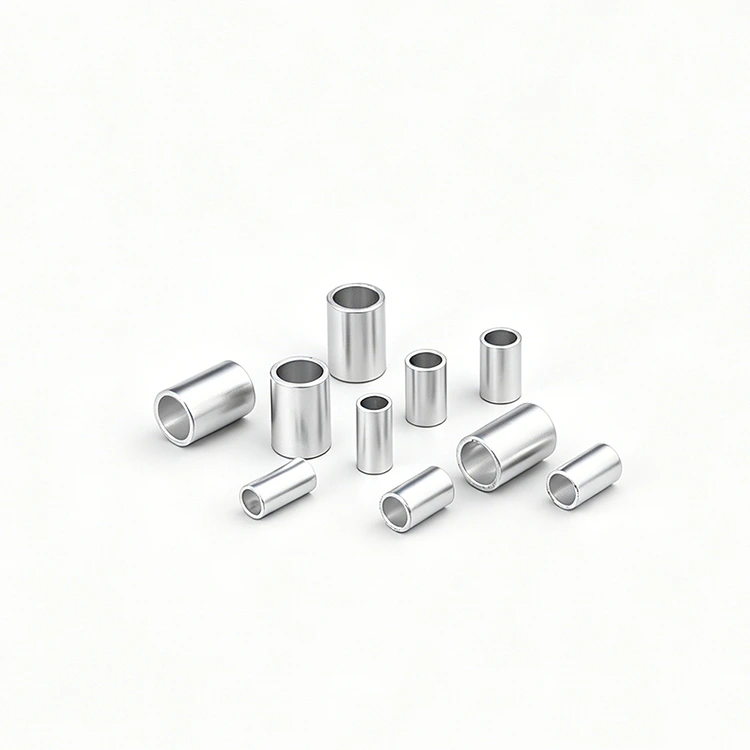

● Surface Treatment: Anti-oxidation passivation (optional tin plating available)

● Connection Type: Cold crimping (no welding required)

● Rated Current: Up to 600A (varies by size)

● Operating Temperature: -40°C to +125°C

● Salt Spray Resistance: ≥ 72 hours (neutral salt spray test)

● Withstand Voltage: ≥ 2kV AC (per industry standards)

● Wire Range: AWG 22 to AWG 2/0 (custom sizes available)

Wide Applications

● Marine distribution cabinets and shipboard electrical systems

● Photovoltaic (PV) solar power systems

● Energy storage systems (ESS) and battery banks

● Electric vehicle (EV) and hybrid vehicle wiring

● Industrial high-current equipment and power grids

● Automation control panels and heavy machinery

● Wind power generation and renewable energy projects

Installation Instructions

1.Wire Preparation: Strip insulation from the wire end to match the terminal length, ensuring no strands are cut or damaged.

2.Insertion: Fully insert the stripped wire into the terminal until it reaches the end of the barrel.

3.Crimping: Use a high-quality, size-matched crimping tool to apply uniform pressure to the terminal barrel.

4.Inspection: Gently pull the wire to verify the connection is secure with no slippage or movement.

5.Insulation: Cover the crimped joint with heat-shrink tubing or electrical tape to protect against moisture, corrosion, and short circuits.

Quality Assurance

All Zenko high current red copper butt terminals undergo rigorous quality control testing, including:

● Raw material composition and conductivity testing

● Salt spray and corrosion resistance testing

● High-current load and heat generation testing

● Mechanical pull-out strength and vibration testing

● Dimensional accuracy and crimp performance inspection

Zenko Factory committed to providing reliable, high current red copper butt terminals that meet the most demanding marine, industrial, and new energy requirements.
