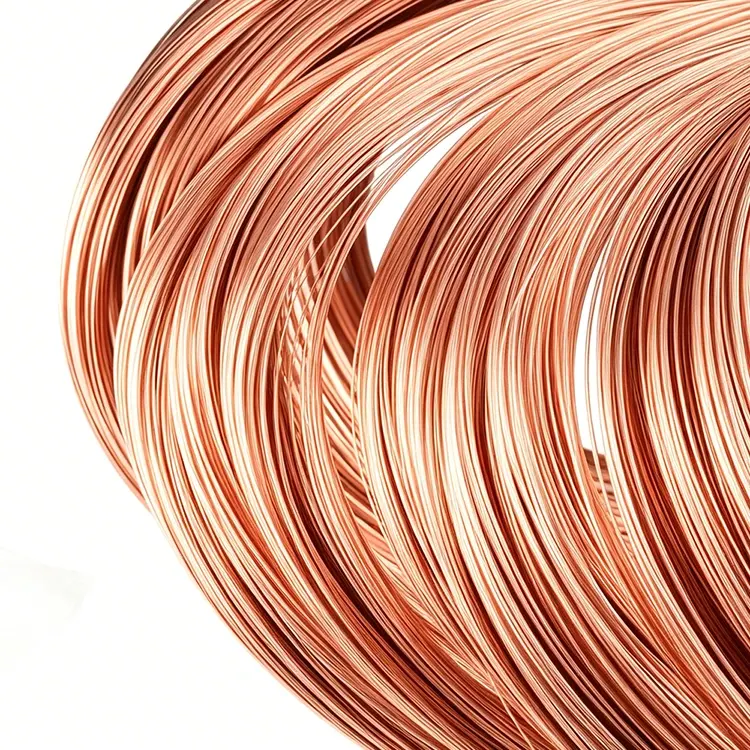

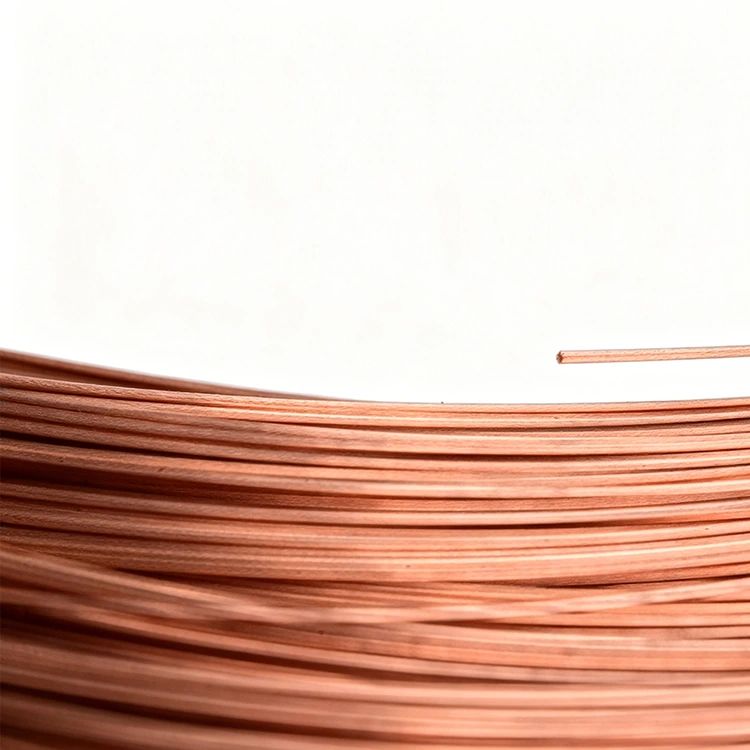

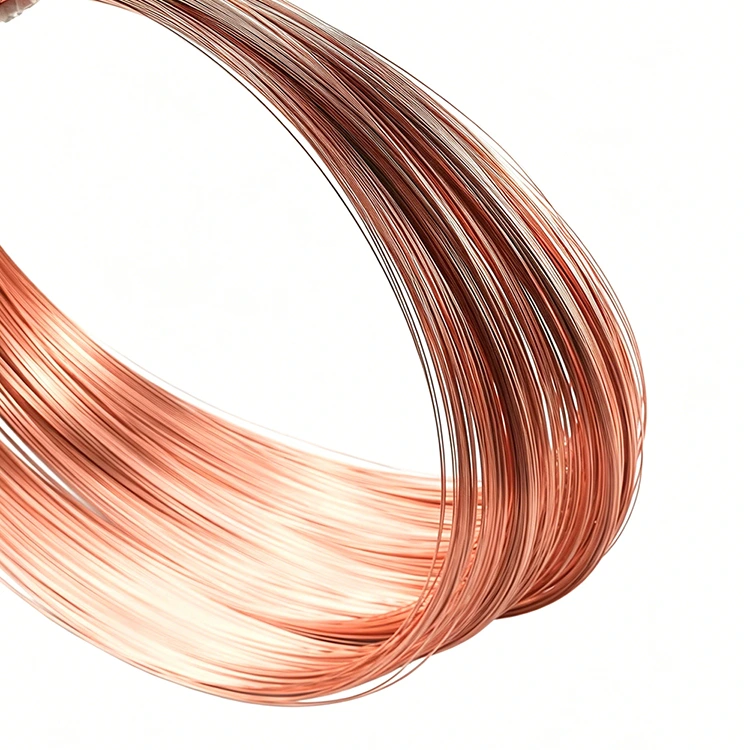

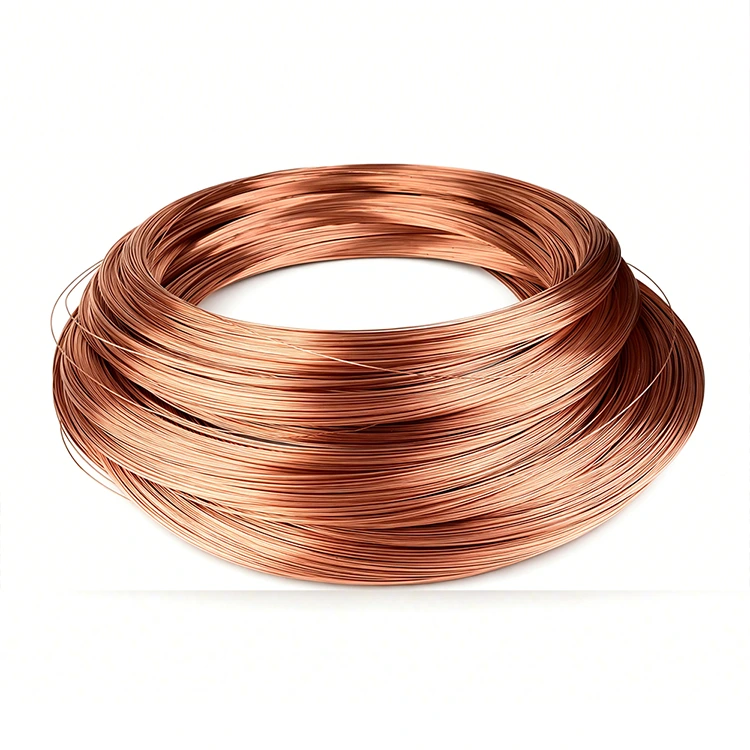

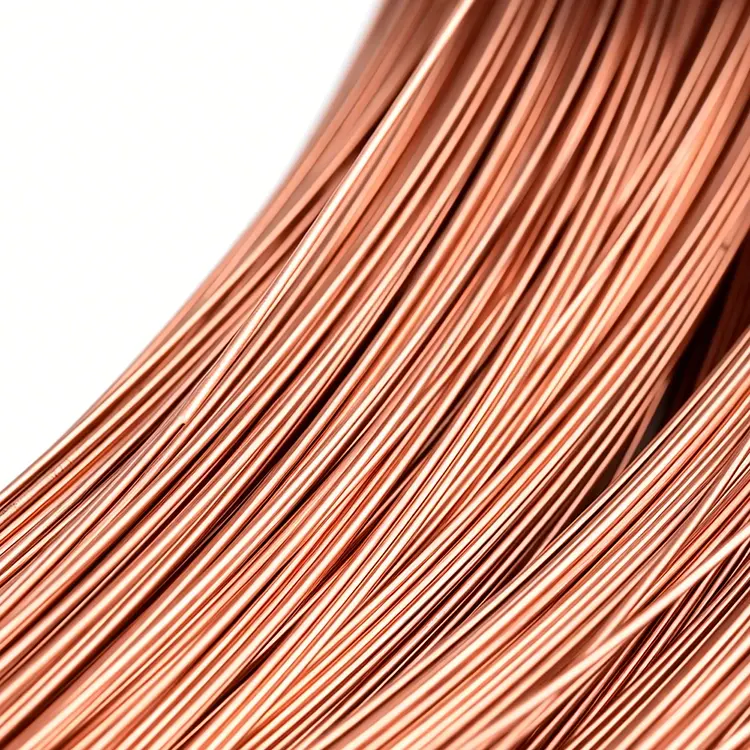

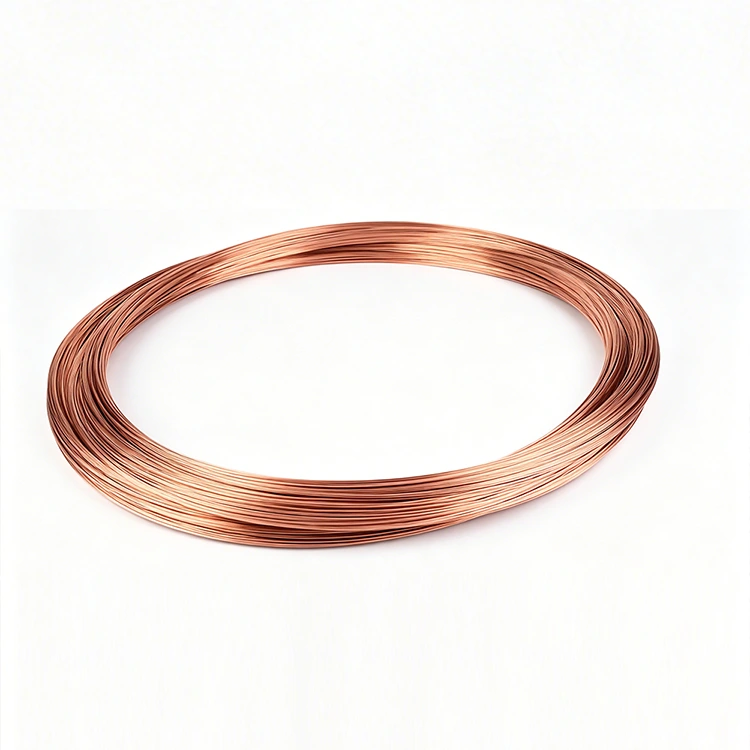

Red Copper Coil for Automation Equipment

Zenko, a leading manufacturer and supplier in China, offers the Red Copper Coil for Automation Equipment, designed to meet the exacting requirements of modern automation and smart manufacturing systems. These high-purity copper coils ensure optimal electrical and thermal performance, reliable fit, and long-term durability for industrial applications, robotics, control systems, and IoT-enabled production lines.

What Is Red Copper Coil for Automation Equipment?

Zenko Red Copper Coil for Automation Equipment is a high-performance precision copper tube coil specifically designed for the demanding requirements of modern automation systems. Manufactured by Wenzhou Zenko Metal Co., Ltd.—a specialized precision metal tube manufacturer since 2017—this product combines 99.9%+ pure red copper (C1100/C1220) with advanced processing technology to deliver outstanding electrical and thermal performance in industrial automation, robotics, precision control systems, and smart manufacturing equipment.

Product Features

●1. Zenko Red Copper Coil for Automation Equipment Ultra-High Purity Copper Material Made from premium C1100/C1220 red copper with 99.9%+ purity, ensuring maximum electrical conductivity and minimal energy loss—critical for high-frequency signal transmission and power delivery in automation systems.

●2. Precision Dimensional Control Available in outer diameters from 0.8mm to 40mm, inner diameters from 0.5mm to 30mm, and wall thicknesses from 0.1mm to 5mm. All dimensions are held to strict tolerances, guaranteeing reliable fit and consistent performance in automated assembly processes.

●3. Zenko Red Copper Coil for Automation Equipment undergoes professional vacuum annealing treatment, relieving internal stresses and achieving uniform hardness (Y state, HV90–110) for superior formability and fatigue resistance in dynamic automation applications.

●4. Ultrasonic Cleaned & Inspected Full ultrasonic cleaning removes all surface contaminants, while CCD vision inspection ensures 100% quality compliance for high-precision orders—essential for cleanroom-compatible automation components.

●5. Full In-House Manufacturing With 25 precision drawing machines, 60 CNC cutting units, 20 automated chamfering stations, 20 cold-forming machines, 2 vacuum annealing furnaces, and 2 ultrasonic cleaning lines, Zenko controls every production step internally. Zero outsourcing means faster delivery, consistent batch quality, and full traceability.

Application Scenarios

●Industrial Automation: PLC wiring, sensor connections, and actuator circuits

●Robotic Systems: Precision conductive pathways for articulated arms and end effectors

●Smart Manufacturing: Signal and power transmission in CNC and IoT-enabled production lines

●Control Systems: High-frequency electromagnetic coils in servo motors and solenoid valves

Customization & Service

Zenko offers full custom specifications—any size within our capacity range, special wall thickness, or unique packaging requirements. We provide 7×24 dedicated export support, free sampling, real-time production tracking with photo/video updates, and lifetime technical assistance. ISO 9001, ROHS, and REACH certified. Trusted by clients across the US, Japan, South Korea, and beyond.

Choose Zenko—precision you can measure, quality you can trust.

Non-Insulated Butt connector （Sizes can be customized）
Material:Red Copper(C1100/C1220/C1010)
Dimension(mm)
D(mm)	0.8 - 40
d1(mm)	0.5 - 30
T（ mm）	0.1-5
Packing	25kgs/ roll, 50kg/roll
Hardness and State	Y （HV90-110)
Remark:	Accept custom orders of any size

Specification	D（mm）	d1（mm）	T（mm）
1.0*0.8	1	0.8	0.15
1.1*0.86	1.1	0.86	0.12
1.1*0.80	1.1	0.8	0.15
1.3*1.0	1.3	1	0.15
1.3*1.1	1.3	1.1	0.1
1.5*1.2	1.5	1.2	0.15
1.7*1.5	1.7	1.5	0.15
2.0*1.7	2	1.7	0.15
2.08*1.78	2.08	1.78	0.15
2.1*1.8	2.1	1.8	0.15
2.3*2.0	2.3	2	0.15
2.6*2.3	2.6	2.3	0.15
3.2*2.8	3.2	2.8	0.2
3.28*2.98	3.28	2.98	0.15
3.9*3.5	3.9	3.5	0.2
4.05*3.65	4.05	3.65	0.2
4.1*3.7	4.1	3.7	0.2
4.9*4.5	4.9	4.5	0.2
6.2*5.8	6.2	5.8	0.2
5.05*4.65	5.05	4.65	0.2
6.35*5.95	6.35	5.95	0.2
6.4*6	6.4	6	0.2
7.85*7.45	7.85	7.45	0.2
7.9*7.5	7.9	7.5	0.2
8.8*8.4	8.8	8.4	0.2
8.7*8.3	8.7	8.3	0.2
